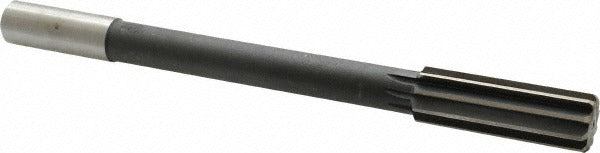

Value Collection 144429602932000 Chucking Reamer Hss

Product Description

The VALUE COLLECTION 144429602932000 is a straight-flute chucking reamer designed for precision hole finishing in metal and similar materials. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers accurate sizing and smooth bore surfaces in production and maintenance machining environments. The reamer measures 0.9062 inches (29/32 inch) in diameter, with a 10 inch overall length and a 2-5/8 inch flute length. The straight-cylindrical shank is compatible with standard drill chucks and collet holders, making it straightforward to mount on drill presses, lathes, and CNC machines. Right-hand cutting direction suits conventional machine rotation. Machinists, tool-and-die workers, and maintenance professionals are the typical end users.

This chucking reamer is suited for reaming pre-drilled or bored holes to a precise finished diameter in ferrous and non-ferrous metals. The 29/32 inch diameter falls within the 0.7000 to 0.9999 inch range, covering a common mid-size bore requirement in general machining, fixture work, and component repair. The 10 inch overall length allows reach into deeper workpieces or fixtures where shorter reamers would not engage fully. The straight flute geometry works well in most through-hole and blind-hole applications where chip evacuation is manageable.

Key Features

• HSS construction provides hardness and wear resistance for reaming steel, cast iron, aluminum, and similar materials
• Straight flute design suitable for through-hole and blind-hole reaming in general machining
• Bright, uncoated finish — no coating buildup to affect dimensional tolerance
• Straight-cylindrical shank fits standard drill chucks and collet holders without adapters
• Right-hand cutting direction compatible with standard machine rotation
• 10 inch OAL provides extended reach for deeper workpiece applications

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and CNC machining centers equipped with a drill chuck or collet capable of accepting a straight-cylindrical shank in the 29/32 inch diameter class.

Installation Notes

Chucking reamers are installed and operated by machinists following standard machine-shop safety practices. Secure the shank fully in the chuck or collet before starting the machine, and confirm runout is within acceptable tolerance before cutting. Always ream at reduced spindle speeds relative to drilling, and use appropriate cutting fluid for the workpiece material to extend tool life and improve finish quality. Power down and de-energize the machine before changing or adjusting tooling.
