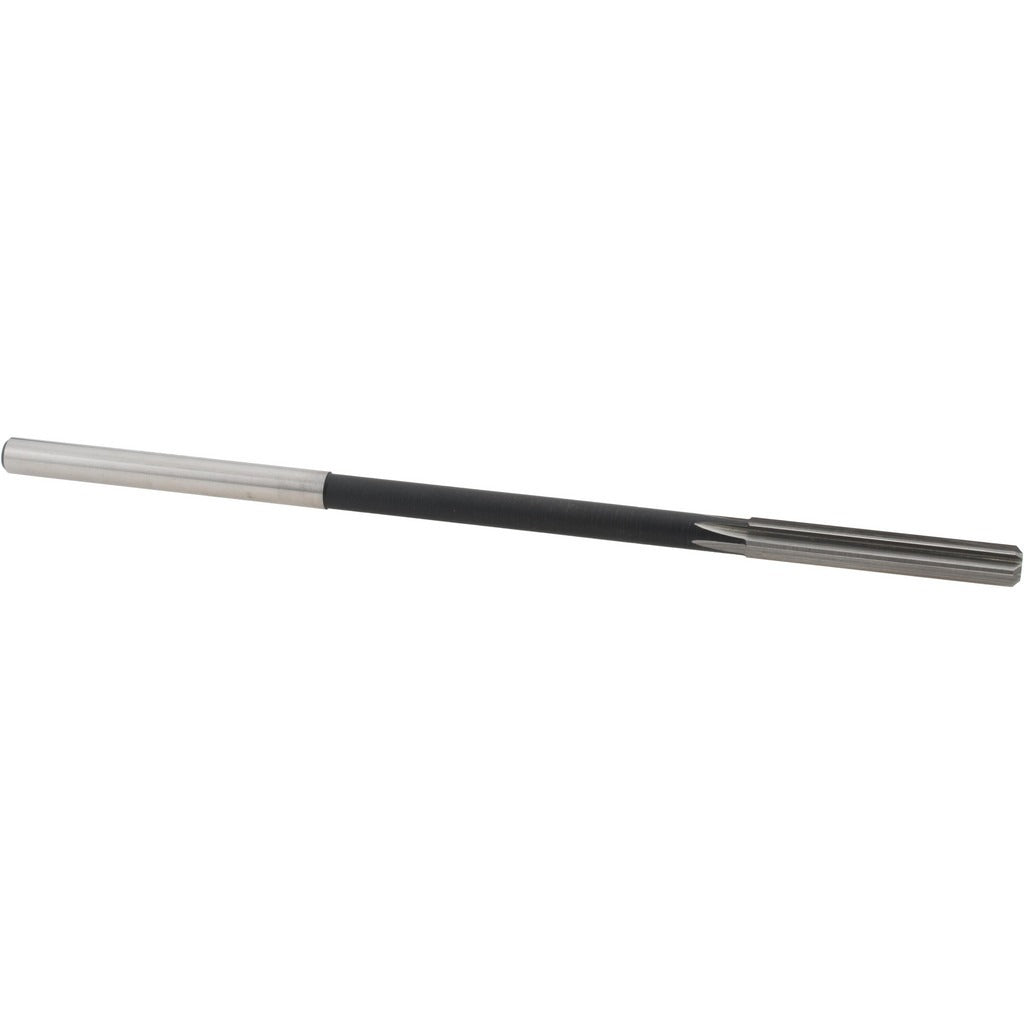

Value Collection 144429602335000 Chucking Reamer Hss

Product Description

The VALUE COLLECTION 144429602335000 is a high-speed steel (HSS) chucking reamer designed to finish-ream drilled or bored holes to a precise 0.2335 inch diameter. With 6 straight flutes and a straight-cylindrical shank, this reamer is built for use in drill presses, CNC machining centers, lathes, and manual milling setups. The straight flute geometry suits through-hole and blind-hole finishing in a wide range of ferrous and non-ferrous materials. Machinists and toolroom technicians rely on chucking reamers like this one to achieve tight diameter tolerances and smooth bore finishes that hand reaming or drilling alone cannot produce.

This reamer fits applications requiring a 0.2335 inch finished bore diameter, placing it within the 0.2000 to 0.2499 inch decimal inch range. It is appropriate for general-purpose production reaming in job shops, maintenance and repair operations, and light manufacturing environments. The straight-cylindrical shank allows secure clamping in standard drill chucks, collet chucks, or floating reamer holders. It is not configured as a dowel pin reamer or an over/under-size reamer, making it a standard on-size finishing tool.

Key Features

• 0.2335 inch finished bore diameter for precise hole sizing
• HSS construction provides good wear resistance across a broad range of workpiece materials
• 6 straight flutes for smooth cutting action and efficient chip evacuation
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• Standard on-size geometry — not a dowel pin or over/under-size configuration

Compatibility

Designed as a standard chucking reamer for use in any machine tool spindle accepting a straight-cylindrical shank; fits applications requiring a 0.2335 inch finished hole diameter within the 0.2000 to 0.2499 inch decimal inch range.

Installation Notes

Chucking reamers are installed and removed by machinists or toolroom technicians — power down and lock out the machine spindle before changing tooling. Secure the shank fully in the chuck or collet to the recommended grip depth to prevent runout. Use cutting fluid appropriate for the workpiece material to extend tool life and improve surface finish. Follow shop floor safety practices and applicable OSHA machine guarding requirements when operating rotating cutting tools.
