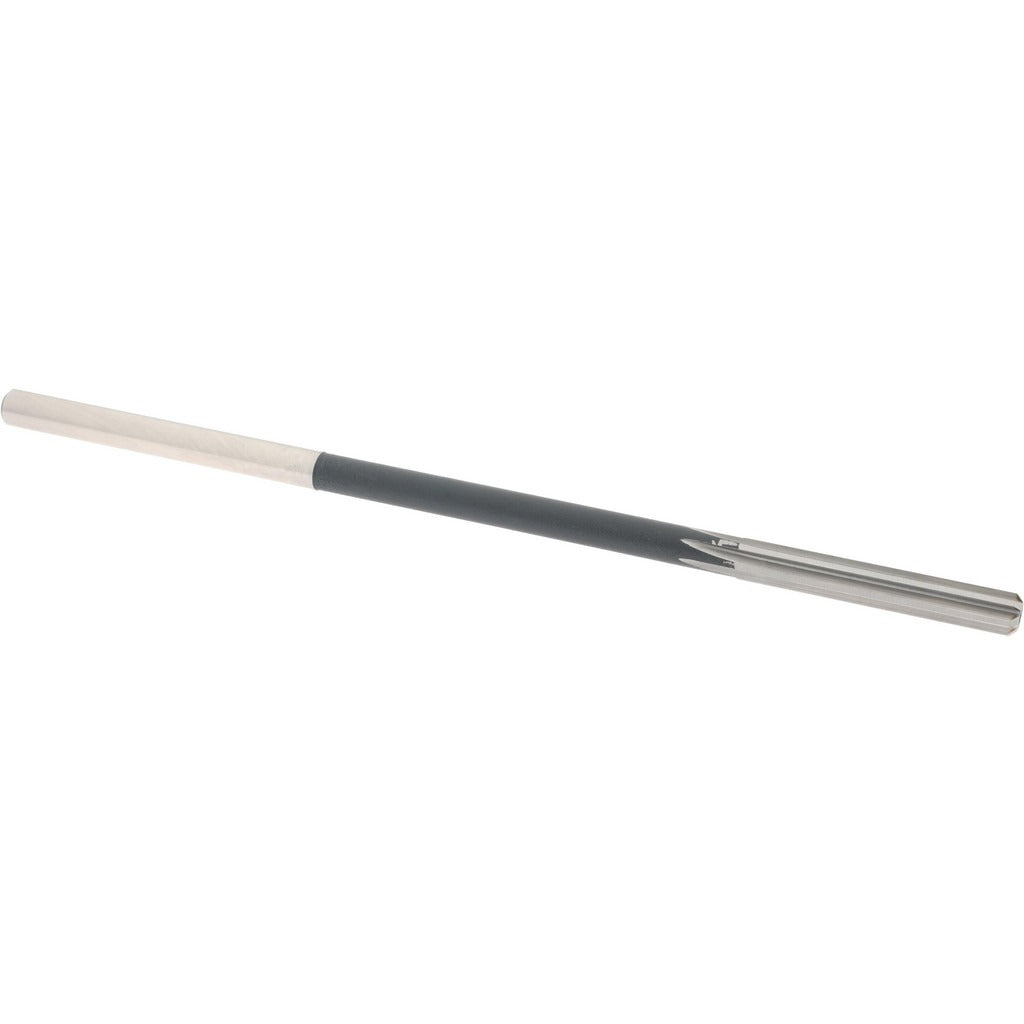

Value Collection 144429602300000 Chucking Reamer 0.23 in

Product Description

The VALUE COLLECTION 144429602300000 is a straight-flute chucking reamer designed to bring bored or drilled holes to a precise finished diameter. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer produces clean, accurate holes in a wide range of workpiece materials. The 0.23-inch cutting diameter and six-flute geometry deliver smooth stock removal with consistent sizing. The straight cylindrical shank seats securely in a drill chuck or collet. Right-hand cutting direction keeps the tool tracking true under normal machining rotation. Machinists, tool-and-die workers, and maintenance professionals install this reamer in bench drills, drill presses, and CNC lathes for finishing operations.

This reamer is suited for finishing holes in ferrous and non-ferrous metals where tight dimensional tolerances are required. Typical applications include final-pass reaming of pin holes, bushing bores, and clearance fits in light to medium production and job-shop environments. The 0.23-inch diameter falls within the 0.2000- to 0.2499-inch decimal inch reamer range, making it a standard selection for fractional and decimal hole finishing tasks. It is not configured as a dowel-pin reamer or an over/under-size reamer, so it is intended for on-size hole finishing only.

Key Features

• 0.23-inch cutting diameter within the 0.2000 to 0.2499 inch decimal range
• Six straight flutes for smooth, consistent stock removal and accurate hole sizing
• High-speed steel construction provides durability across a broad range of metals
• Bright uncoated finish suits standard finishing cuts without added coating thickness
• Right-hand cutting direction compatible with standard machine rotation
• Straight cylindrical shank for direct chuck or collet mounting

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and CNC machining centers equipped with a drill chuck or collet capable of accepting a straight cylindrical shank.

Installation Notes

Secure the shank fully in a properly sized drill chuck or collet before operation. Ensure the machine spindle is stopped and power is off before loading or changing the reamer. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Follow applicable shop safety and machine tool operating procedures during setup and use.
