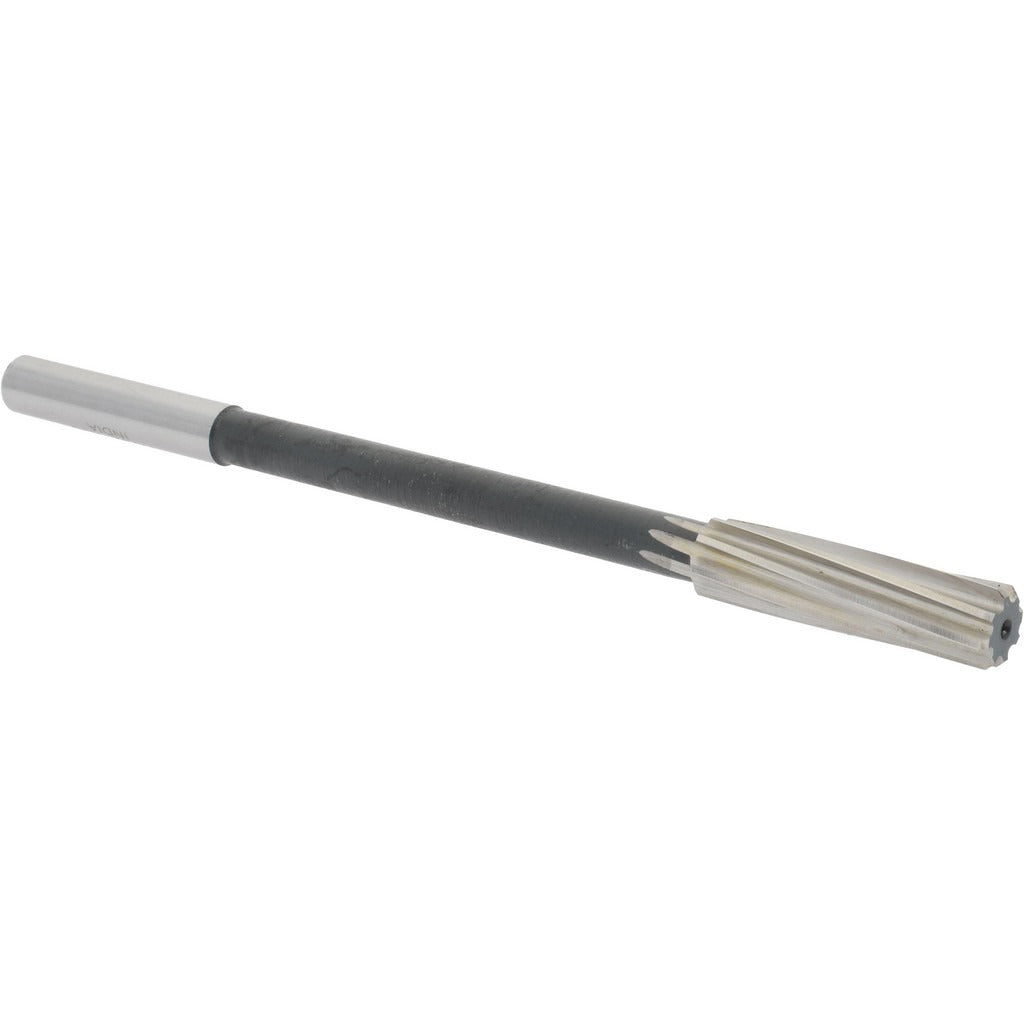

Value Collection 14442960173200S Chucking Reamer Hss

Product Description

The VALUE COLLECTION 14442960173200S is a straight-flute chucking reamer designed for finishing drilled or bored holes to a precise diameter in metalworking and machining applications. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer measures 17/32 inch (0.5313 inches) in diameter with an 8-inch overall length and a 2-inch flute length. The spiral right-hand flute geometry promotes smooth cutting action and efficient chip evacuation. This tool is intended for use in drill presses, lathes, and milling machines where hole tolerance and surface finish are critical to the finished part.

This chucking reamer is suited for production and maintenance machining environments where holes must be brought to a close tolerance after drilling. The straight-cylindrical shank seats securely in standard drill chucks and collet holders. At 0.5313 inches in diameter, it is well matched for through-hole and blind-hole reaming operations in steel, cast iron, aluminum, and similar machinable materials. It is not configured as an over or under-size reamer and does not function as a dowel pin reamer.

Key Features

• 17/32 inch (0.5313 inches) reamer diameter for consistent, repeatable hole sizing
• High-speed steel (HSS) construction provides hardness and wear resistance across a range of workpiece materials
• Spiral right-hand flute design with right-hand cutting direction for smooth chip removal
• 8-inch overall length with 2-inch flute length suits standard chucking setups
• Straight-cylindrical shank compatible with common drill chucks and collet holders
• Bright, uncoated finish — no coating concerns for applications requiring bare HSS contact

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and milling machines equipped with drill chucks or collet holders accepting a straight-cylindrical shank.

Installation Notes

Chucking reamers are installed and operated by machinists familiar with metal cutting practices. Ensure the machine is fully powered down and the spindle is at rest before mounting or removing the reamer. Secure the shank firmly in the chuck or collet to prevent runout, which directly affects hole finish and diameter accuracy. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
