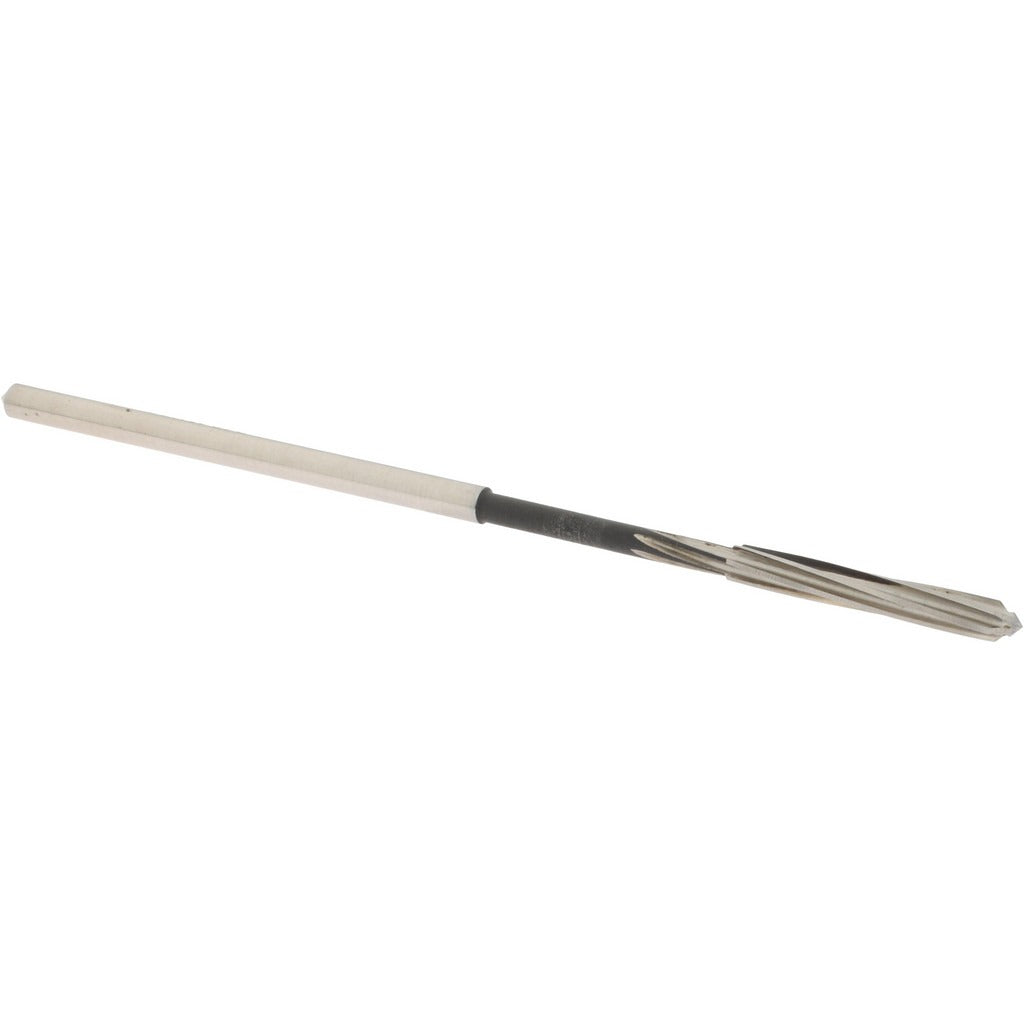

Value Collection 14442960096400S Chucking Reamer Hss

Product Description

The VALUE COLLECTION 14442960096400S is a chucking reamer designed to finish and size drilled holes to close tolerances in metal workpieces. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer features a spiral flute with right-hand cutting action for smooth material removal and consistent hole finish. The straight-cylindrical shank seats securely in standard drill chucks and collets. With an overall length of 4 inches and a 1-inch flute length, it is sized for general-purpose reaming operations on the bench or under power. Machinists, tool and die workers, and general metalworking tradespeople reach for this type of reamer when a drilled hole needs to be brought to a precise final diameter.

This reamer is suited for use in drill presses, lathes, and CNC machining centers where a 9/64-inch (0.1406-inch decimal) finished bore diameter is required. It performs in a range of ferrous and non-ferrous metals where HSS tooling is appropriate. Typical applications include sizing holes for dowel pins, bearing fits, and precision fastener clearances in light manufacturing and maintenance machining environments. The bright finish makes this reamer a cost-effective choice for general-purpose shop use where a coated tool is not required.

Key Features

• 9/64-inch (0.1406-inch decimal) reamer diameter for precise hole sizing
• High-speed steel (HSS) construction provides durability in general metalworking applications
• Spiral flute geometry with right-hand cut for smooth cutting action and chip evacuation
• Straight-cylindrical shank fits standard drill chucks and collets
• Bright, uncoated finish suited for general-purpose reaming in ferrous and non-ferrous metals
• 4-inch overall length with 1-inch flute length for compact, versatile use

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, lathes, and machining centers that accept straight-cylindrical shank tooling and require a 9/64-inch finished hole diameter.

Installation Notes

Chucking reamers are installed by machinists and toolroom technicians in standard drill chucks or collet holders. Always ensure the workpiece is securely fixtured and the machine spindle is properly aligned before reaming to avoid bell-mouthing or oversizing the bore. Use the appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Inspect the cutting edges before each use and remove the tool from service if chipping or wear is observed.
