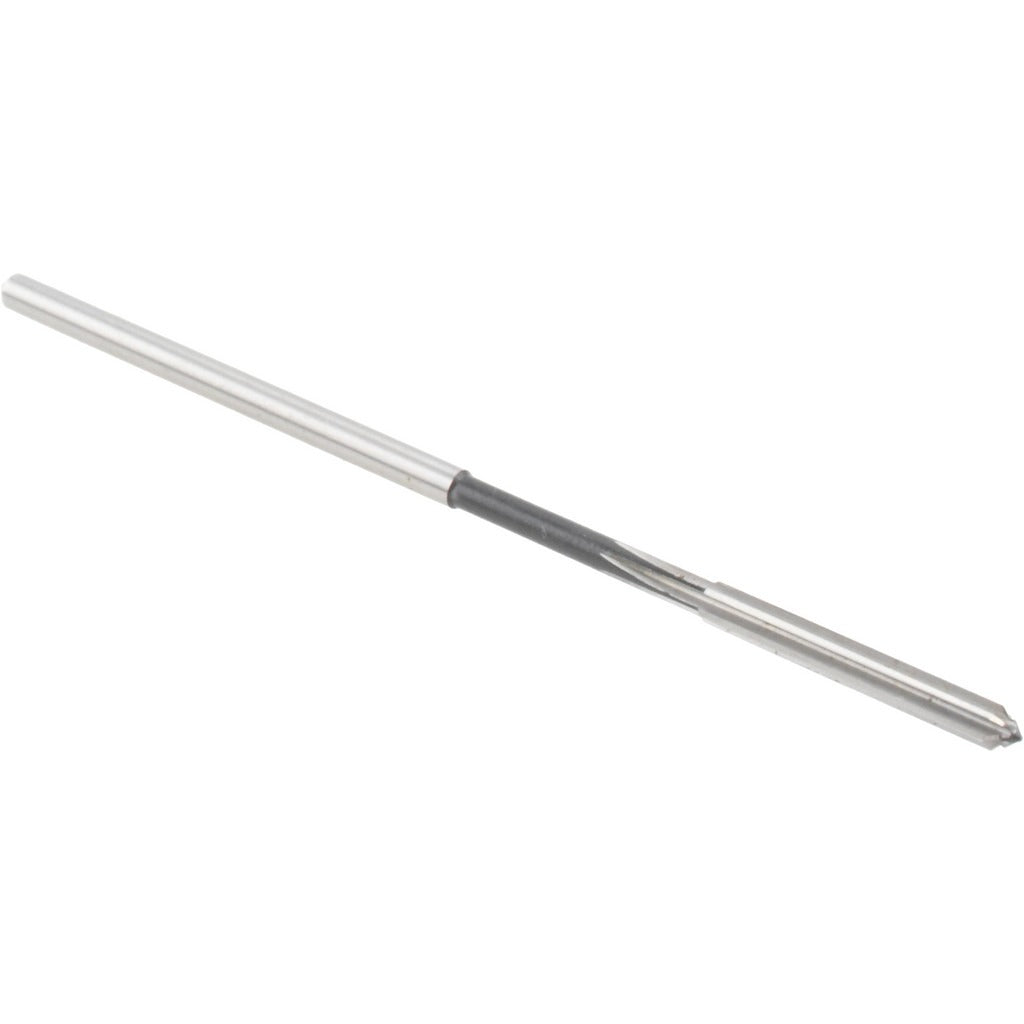

Value Collection 144429600028000 Chucking Reamer Size 28 Hss

Product Description

The VALUE COLLECTION 144429600028000 is a wire gauge size 28 chucking reamer designed for precision hole finishing in metal and other machinable materials. Machined from high-speed steel (HSS), it delivers the hardness and heat resistance needed for production drilling and reaming operations. The reamer measures 4 inches overall length with a 1 inch straight flute section and a decimal diameter of 0.1405 inches. The straight-cylindrical shank seats securely in standard drill chucks, collets, and reamer holders on manual and CNC machines. Machinists, tool and die makers, and maintenance technicians install this type of reamer to bring drilled or bored holes to a precise finished diameter.

This chucking reamer is suited for light-duty stock removal on holes that require close-tolerance finishing. Typical applications include through-hole and blind-hole reaming in ferrous and non-ferrous metals at wire size 28, equivalent to 0.1405 inches decimal diameter. It fits standard machine setups in job shops, maintenance facilities, and production environments where consistent hole sizing is required. The straight flute geometry works best in non-interrupted cuts through materials that do not produce stringy chips.

Key Features

• Wire size 28 diameter, 0.1405 inches decimal equivalent for precise hole finishing
• High-speed steel (HSS) construction resists heat buildup during machine reaming
• Straight flute design suited for through-hole and short blind-hole applications
• Straight-cylindrical shank compatible with standard drill chucks and collets
• 4 inch overall length with 1 inch flute length for controlled depth engagement
• Sold individually, minimum order quantity of 1

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, milling machines, and CNC machining centers equipped with a straight-shank chuck or collet capable of holding a 0.1405 inch diameter shank.

Installation Notes

Chucking reamers are installed and operated by machinists or maintenance technicians on powered machine tools. Secure the straight-cylindrical shank firmly in the chuck or collet before operation and verify runout before cutting. Apply appropriate cutting fluid for the workpiece material to extend tool life and maintain hole finish quality. Do not use this reamer as a drill to remove large amounts of stock; it is designed for light finishing passes only.
