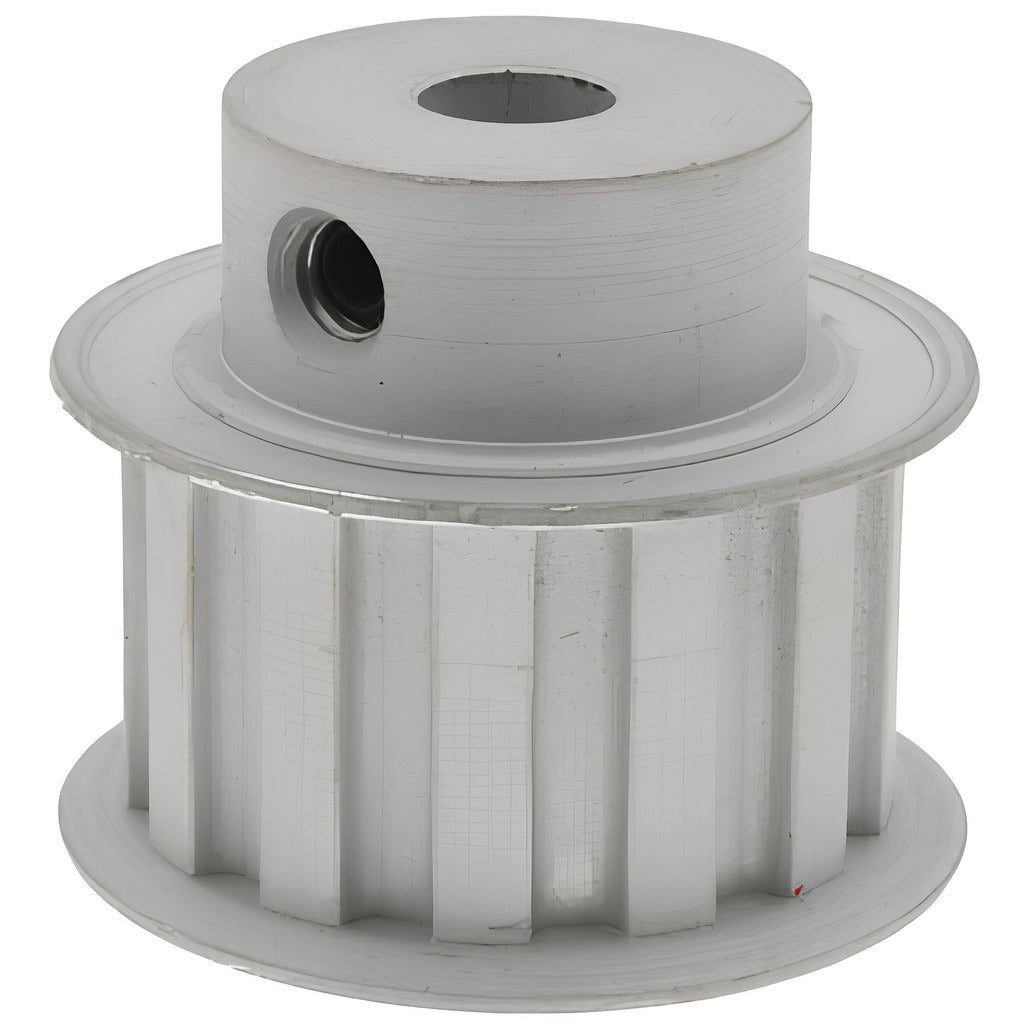

Value Collection 13L075-6FA-3/8 Timing Belt Pulley 13T

Product Description

The VALUE COLLECTION 13L075-6FA-3/8 is a hub flange timing belt pulley designed for use with L-series synchronous drive belts. Machined from aluminum, this pulley features 13 teeth and accepts a 3/8 inch bore shaft. The outside diameter measures 1.522 inches with a pitch diameter of 1.552 inches and a face width of 1 inch. The integrated flanges, measuring 1.656 inches in diameter, help keep the belt tracked during operation. This pulley is installed by mechanical technicians and maintenance professionals working on light-duty power transmission and motion control systems.

This timing belt pulley is suited for residential and light commercial machinery, conveyor systems, and automated equipment where precise synchronous belt drive is required. It is compatible with standard L-series timing belts with a 3/4 inch belt width. The aluminum construction keeps rotating mass low, making it appropriate for moderate-speed drive applications where weight and corrosion resistance are priorities.

Key Features

• 13-tooth profile matched to L-series timing belts
• 3/8 inch bore for direct shaft mounting
• Hub flange design aids belt retention and tracking
• Aluminum construction reduces rotating mass and resists corrosion
• 1 inch face width accommodates standard 3/4 inch L-series belt width
• Flange diameter of 1.656 inches provides positive belt containment

Compatibility

Designed for use with L-series synchronous timing belts with a 3/4 inch belt width. Verify bore size, tooth count, and belt trade size before installation to confirm fitment with the target drive assembly.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. Power down and lockout/tagout the drive system before removing or installing any pulley. Ensure the shaft diameter matches the 3/8 inch bore before pressing or securing the pulley. Check belt tension and alignment according to the equipment manufacturer specifications after installation.
