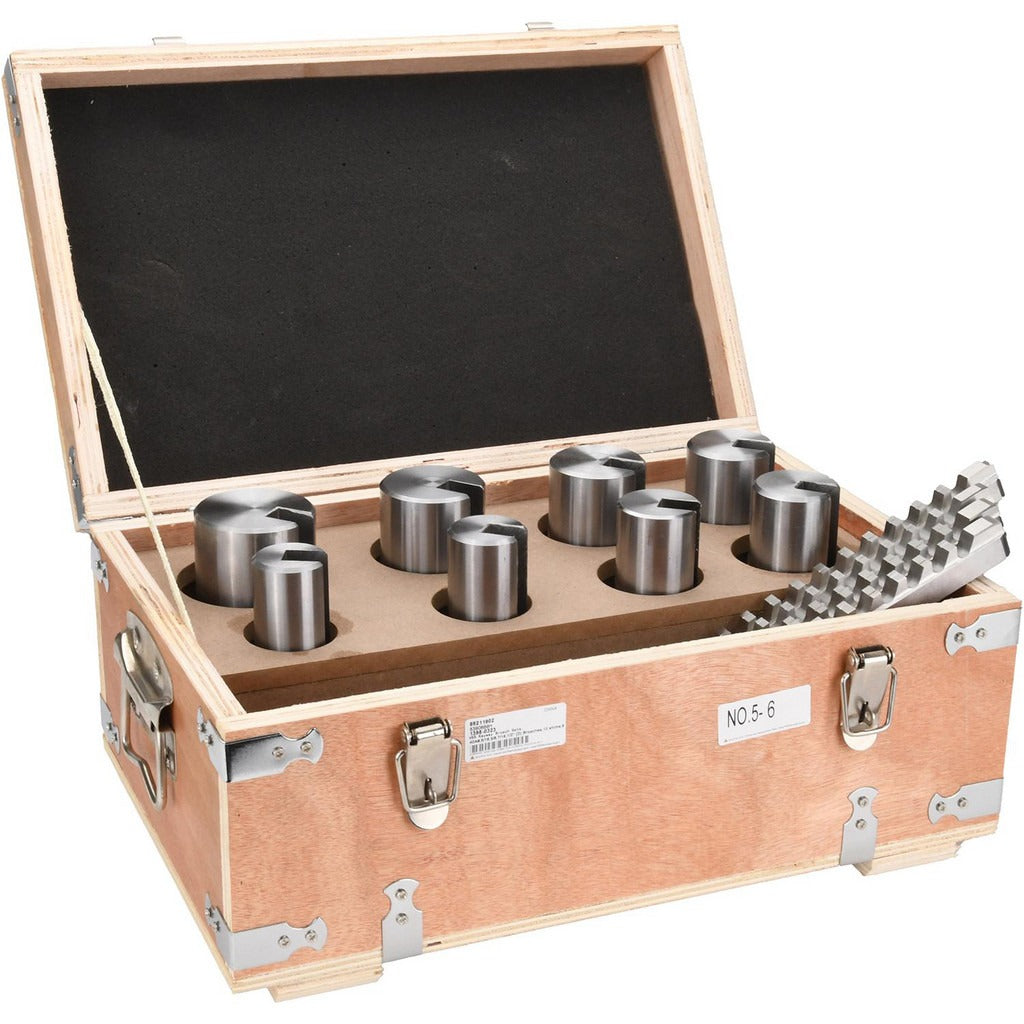

Value Collection 1395-0323 Style D Keyway Broach Set

Product Description

The VALUE COLLECTION 1395-0323 is a 22-piece Style D keyway broach set designed for cutting keyways in a range of bushing bores. Built from high-speed steel with a bright, uncoated finish, this set handles keyway widths from 5/16 to 1/2 inch and accommodates plain bushings with diameters from 1-1/2 to 2-1/2 inches. It requires 10 shims per cut, which are included in the set. Machinists and tool-and-die professionals use this set to produce precise, square-shouldered keyways in hubs, pulleys, and sprockets. The vendor set number is No. 40A.

This broach set is suited for job shops, maintenance facilities, and production environments where a range of keyway sizes must be cut in a single kit. The Style D profile is a standard configuration used with push-type or arbor-press broaching operations on plain bushings. The set covers multiple keyway width increments across the 5/16 to 1/2 inch range, reducing the need to source individual broach pieces for common shaft sizes.

Key Features

• 22-piece set covers keyway widths from 5/16 to 1/2 inch in standard increments
• High-speed steel construction for durability across a wide range of workpiece materials
• Bright, uncoated finish for dimensional consistency and ease of inspection
• Accommodates plain bushings from 1-1/2 to 2-1/2 inches in diameter
• Requires 10 shims per cut — shims included in the set
• Vendor set No. 40A for cross-referencing and replacement piece sourcing

Compatibility

Designed for use with plain bushings ranging from 1-1/2 to 2-1/2 inches in diameter in standard Style D keyway broaching applications.

Installation Notes

Keyway broaching is performed by qualified machinists using an arbor press or hydraulic press rated for the cutting load of the broach size selected. Always secure the workpiece firmly before pressing the broach through the bore. Inspect broach teeth and shims for damage or wear before each use. Follow applicable shop safety practices and machine guarding requirements when operating pressing equipment.
