Value Collection 1395-0322 Style D Keyway Broach Set

Product Description

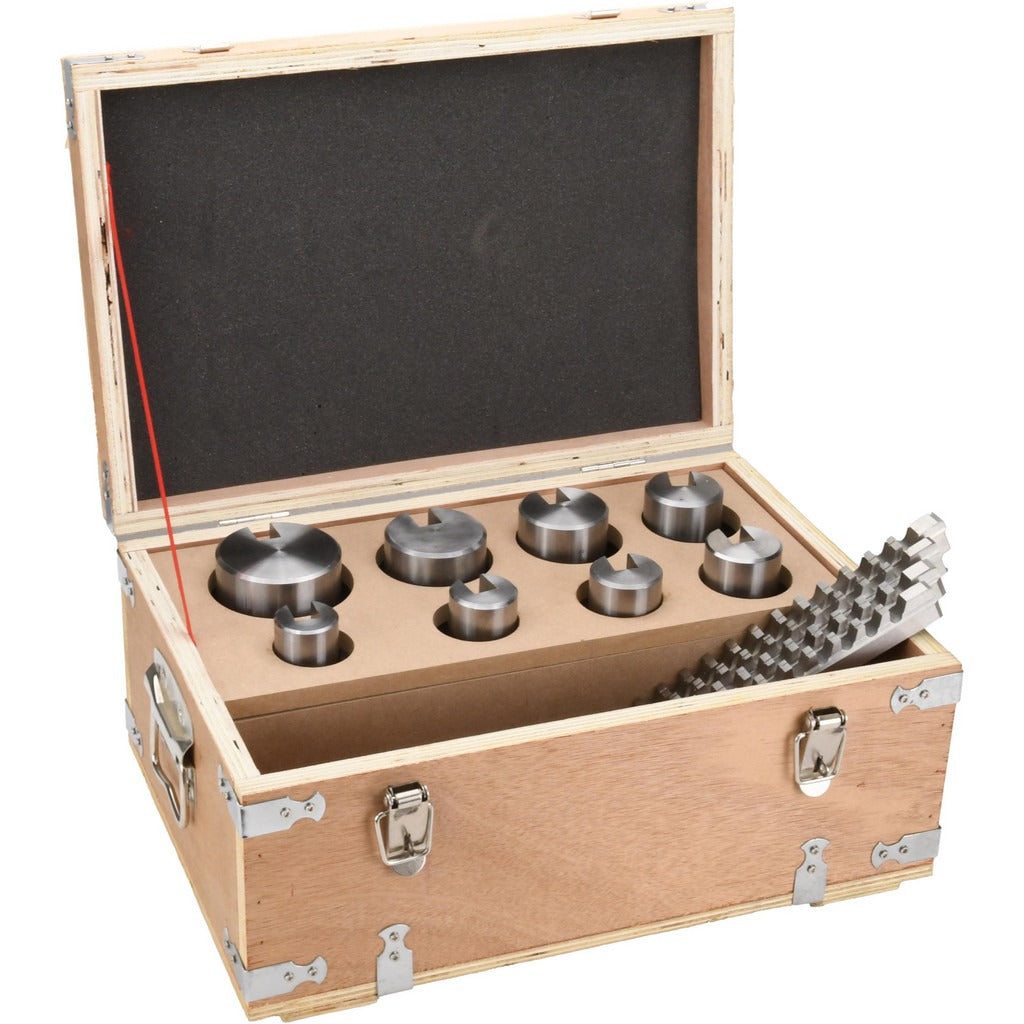

The VALUE COLLECTION 1395-0322 is a 22-piece Style D keyway broach set designed for cutting precision keyways in bores across a range of bushing sizes. Built from high-speed steel with a bright, uncoated finish, the set handles keyway widths from 5/16 to 1/2 inch and accommodates plain bushings with diameters ranging from 1-7/16 to 2-15/16 inches. Ten shims are required for proper depth progression during cutting. This set is intended for machinists, tool and die makers, and maintenance professionals who need a complete broaching solution for keyed shaft assemblies.

This set is suited for production and maintenance environments where keyed bore connections are common, including industrial machinery, conveyor systems, gearboxes, and power transmission equipment. The Style D broach configuration is a widely used standard for square keyway cutting with plain push-type bushings. The set covers multiple keyway widths, making it appropriate for shops that service varied equipment with different shaft and hub specifications.

Key Features

• 22-piece set covers keyway widths from 5/16 to 1/2 inch in a single kit
• Style D broach geometry for use with plain push-type bushings
• High-speed steel construction for durability and edge retention during broaching operations
• Bright, uncoated finish for easy inspection of wear and surface condition
• Compatible with plain bushings from 1-7/16 to 2-15/16 inches in diameter
• Requires 10 shims for full depth-of-cut progression

Compatibility

Designed for use with plain push-type bushings in the 1-7/16 to 2-15/16 inch diameter range using Style D keyway broach tooling. Vendor set reference is No. 40.

Installation Notes

Keyway broaching is performed by machinists using an arbor press or hydraulic press rated for the required push force. The workpiece must be securely fixtured and the bushing properly aligned before each pass. Shims are added incrementally to achieve the required keyway depth — never force the broach beyond the designed shim progression. Ensure the bore and bushing are lubricated with cutting oil prior to each stroke to protect the cutting edges and extend tool life.
