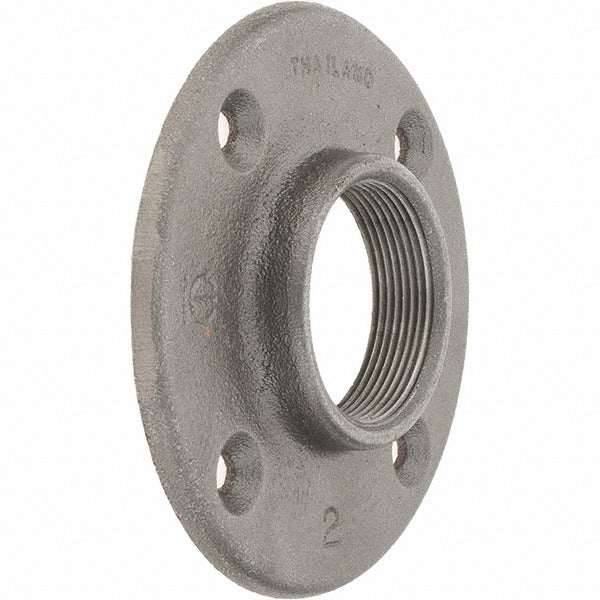

Value Collection 13885G Black Floor Pipe Flange 2 in Class 150

Product Description

The VALUE COLLECTION 13885G is a black floor pipe flange designed for 2-inch pipe connections in piped distribution and plumbing systems. Built to Class 150 standards with a 150 psi pressure rating, this flange provides a secure, floor-level anchor point for vertical pipe runs. It features a 5.5-inch outside diameter and a 1-inch hub length, giving installers a stable base for pipe termination or support. The four-bolt hole pattern, centered on a 4.25-inch bolt circle with 5/16-inch bolt holes, allows straightforward fastening to floor surfaces. Plumbers and pipefitters install this type of flange in both residential and light commercial applications.

This floor flange is suited for use in residential plumbing, light commercial pipe systems, and industrial support applications where a Class 150-rated, 2-inch pipe connection is required at the floor level. It is commonly used when anchoring pipe risers, installing decorative pipe assemblies, or securing structural pipe frameworks to concrete or wood subfloor surfaces.

Key Features

• 2-inch pipe size fits standard 2-inch nominal pipe threads
• 5.5-inch outside diameter provides a broad, stable mounting base
• 1-inch hub length for secure pipe engagement
• Four bolt holes on a 4.25-inch bolt circle with 5/16-inch diameter openings
• Rated to 150 psi at Class 150 service conditions
• Black finish suitable for exposed or concealed installations

Compatibility

Designed as an OEM-style replacement or new-installation flange for 2-inch nominal pipe systems rated at Class 150 service conditions.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes. Shut off the water supply and depressurize the line before fitting the flange. Use appropriate thread sealant or PTFE tape on threaded pipe connections, and verify that fastener size matches the 5/16-inch bolt holes before anchoring to the floor substrate. Do not exceed the rated 150 psi operating pressure.
