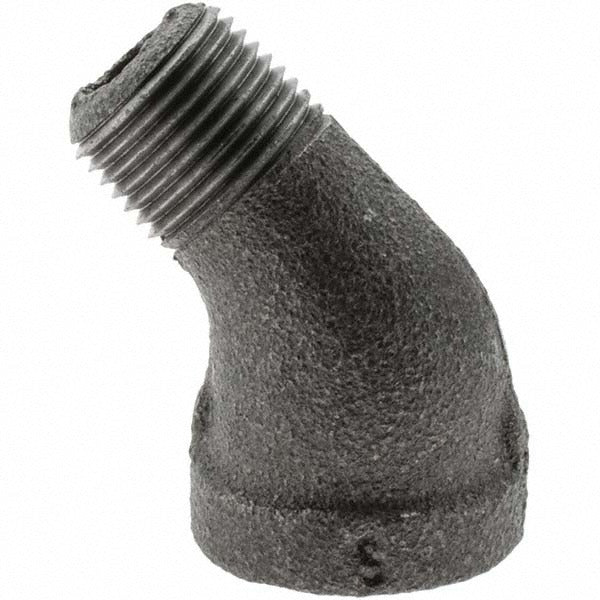

Value Collection 13282G 45 Degree Street Elbow 3/8 Inch

Product Description

The VALUE COLLECTION 13282G is a 45-degree street elbow fitting used to change flow direction in threaded piping systems. Constructed from malleable iron with a black finish, this fitting handles both liquid and gas service at up to 300 psi. The Class 150 pressure rating makes it a standard choice for low- to medium-pressure commercial and industrial piping runs. The 3/8 inch size suits smaller-diameter branch lines and instrument connections. Licensed plumbers, pipefitters, and gas service technicians install this type of fitting in new construction and retrofit applications.

This street elbow is suited for residential and light commercial piping systems where a 45-degree directional change is needed in a compact space. The street configuration means one end is a male NPT thread and the other is a female NPT thread, allowing direct connection without an additional nipple. Common applications include gas distribution piping, compressed air lines, steam condensate systems, and water distribution piping where malleable iron fittings are specified.

Key Features

• 45-degree street elbow geometry for directional changes without an added nipple
• Malleable iron construction with black finish for corrosion resistance in typical service environments
• 300 psi liquid and gas pressure rating
• Class 150 classification meeting standard piping system requirements
• 3/8 inch threaded end connections (NPT)

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8 inch threaded malleable iron piping systems rated at Class 150.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or gas fitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the piping system fully before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to male NPT threads before assembly. Do not overtighten; hand-tighten first, then use a pipe wrench for final makeup.
