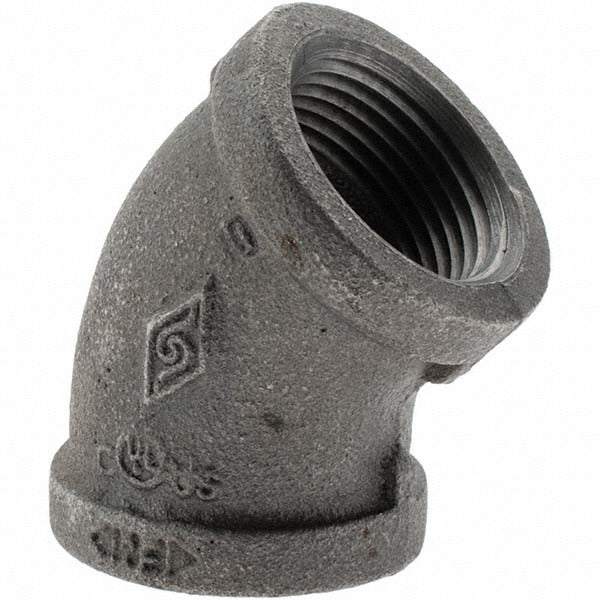

Value Collection 13265G 45 Degree Elbow 1 in Malleable Iron

Product Description

The VALUE COLLECTION 13265G is a 45-degree malleable iron pipe elbow with a black finish, rated for Class 150 service. It features threaded end connections sized at 1 inch and carries a liquid and gas pressure rating of 300 psi. This fitting is used to redirect piping runs at a 45-degree angle in plumbing, HVAC, and industrial piping systems. Malleable iron construction provides the ductility and thread integrity required for reliable, code-compliant installations in both gas and liquid service applications. Licensed plumbers, pipefitters, and HVAC technicians are the primary installers of this fitting type.

This elbow is suited for residential and light commercial piping applications where a 45-degree change of direction is required. It is appropriate for use in gas distribution, water supply, and general industrial piping where malleable iron fittings are specified. The threaded connection style is compatible with standard NPT pipe threads at the 1-inch nominal pipe size. Class 150 malleable iron fittings of this type are widely specified in plumbing and mechanical systems governed by the IPC and IFGC.

Key Features

• 45-degree elbow geometry for mid-angle direction changes in piping runs
• Malleable iron construction for durability and thread-hold strength
• Black finish suitable for gas piping and industrial applications
• Class 150 rated with 300 psi liquid and gas pressure rating
• Threaded end connections for standard NPT pipe assembly
• 1-inch nominal pipe size for common residential and light commercial piping

Compatibility

Designed as a standard Class 150 malleable iron threaded fitting for use with 1-inch nominal pipe in gas, water, and general industrial piping systems.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with applicable IPC, IFGC, or local mechanical codes. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly, following the sealant manufacturer and code requirements for the service type. Do not over-tighten threaded fittings; use a pipe wrench with appropriate leverage for the nominal pipe size.
