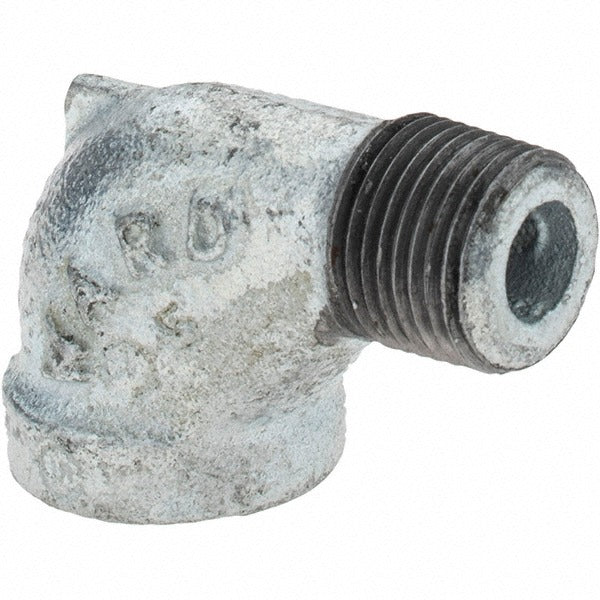

Value Collection 13022 Malleable Iron 90 Deg Street Elbow 3/8 in

Product Description

The VALUE COLLECTION 13022 is a 3/8 inch malleable iron 90 degree street elbow designed for threaded pipe systems in plumbing, gas distribution, and mechanical piping applications. Rated at 300 psi for liquid and gas service and 150 psi for steam, this Class 150 fitting meets the pressure demands of standard commercial and residential piping systems. The galvanized finish provides corrosion resistance in exposed or moderately humid environments. It is installed by licensed plumbers and pipefitters working on low- to medium-pressure gas lines, water distribution, and steam systems.

This street elbow is suited for residential and light commercial piping installations where a 90 degree direction change is needed within a threaded pipe run. The street configuration means one end accepts a male threaded pipe or fitting directly, eliminating the need for an additional nipple in tight spaces. Typical applications include natural gas distribution lines, compressed air piping, water service lines, and steam heating systems operating within the rated pressure limits.

Key Features

• 300 psi liquid and gas pressure rating for reliable service in standard pipe systems
• 150 psi steam pressure rating suitable for low-pressure steam heating applications
• Malleable iron construction provides strength and resistance to mechanical stress
• Galvanized finish offers corrosion protection in exposed or damp conditions
• Street elbow design eliminates the need for an extra nipple in confined spaces
• Class 150 rating consistent with standard malleable iron fitting specifications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8 inch threaded pipe systems using Class 150 malleable iron components.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Plumbing Code, or the International Fuel Gas Code where applicable. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly, and tighten using pipe wrenches to achieve a proper seal without over-torquing the fitting. Inspect all joints for leaks after pressurizing the system.
