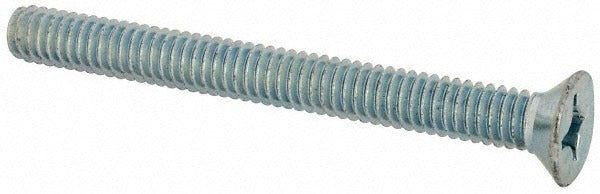

Value Collection 1236MPF 12-24x2.25in Flat Phillips Screw

Product Description

The VALUE COLLECTION 1236MPF is a 12-24 unified coarse thread machine screw designed for general-purpose mechanical assembly. It features a flat head profile for flush or countersunk seating and a Phillips drive for use with standard cross-tip drivers. The fastener is manufactured from steel with a zinc finish that provides basic corrosion resistance for indoor and light-duty applications. At 2.25 inches overall length with threads measured to the same dimension under head, this screw is suited for medium-depth fastening applications across a range of materials. Machinists, maintenance technicians, and assembly workers are the primary installers of this fastener.

This screw is appropriate for light industrial, commercial, and residential maintenance applications where a 12-24 threaded connection is specified. It is commonly used in panel assemblies, equipment housings, junction boxes, and general metalwork where a flush or countersunk head is required. The zinc coating makes it suitable for dry or low-humidity indoor environments. It conforms to ASME B18.6.3 and SAE J82 fastener standards, making it an appropriate choice when a graded, standards-compliant fastener is specified in an assembly.

Key Features

• 12-24 unified coarse thread for broad tooling and hardware compatibility
• Flat head design for flush countersunk seating in assemblies
• Phillips drive compatible with standard cross-tip screwdrivers and bits
• Steel construction with zinc finish for basic corrosion protection
• Meets ASME B18.6.3 and SAE J82 fastener standards
• Overall length and length under head both measure 2.25 inches

Compatibility

Designed as a standard 12-24 machine screw for use in any assembly or enclosure that calls for a flat head Phillips fastener conforming to ASME B18.6.3 or SAE J82 specifications.

Installation Notes

Install using a Phillips screwdriver or bit driver sized for the No. 2 or No. 3 tip appropriate to a No. 12 screw head. Countersink the mating material to the correct angle to achieve full flush seating of the flat head. Do not overtighten, as this fastener is a machine screw intended for use in tapped holes or with a mating nut, and thread stripping is possible if torque is excessive. Minimum order quantity is 100 units per order.
