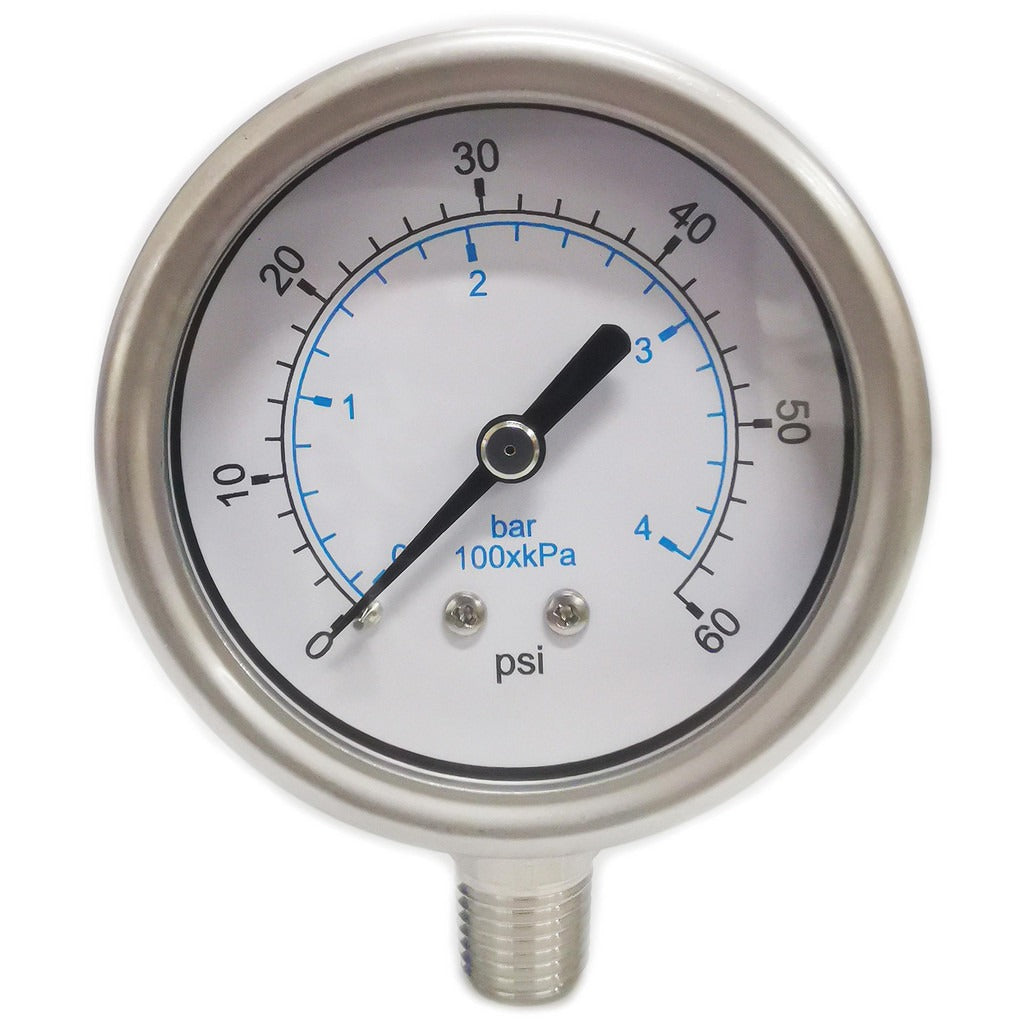

Value Collection 116AL25060D Pressure Gauge 60 Psi

Product Description

The VALUE COLLECTION 116AL25060D is a dry, analog pressure gauge designed for monitoring system pressure in plumbing, HVAC, and industrial fluid-handling applications. It features a 2.5-inch dial face with a 0 to 60 psi range and a stainless steel Bourdon tube movement for accurate, repeatable readings. The stainless steel case and fully stainless wetted parts make it suitable for use with mildly corrosive media and wet environments. Accuracy is rated at plus or minus 3-2-3 percent of scale, meeting standard Grade B requirements. This gauge is a common fit for boilers, pumps, compressors, and water supply systems where a compact, corrosion-resistant gauge is needed.

This gauge is suited for both residential and light commercial installations. The lower-mount (bottom-entry) 1/4-inch NPT connection threads directly into standard gauge ports on pipe fittings, manifolds, pump housings, or pressure vessels. Licensed plumbers, HVAC technicians, and pipefitters install this type of gauge during new construction and as a direct replacement when an existing gauge has failed or drifted out of calibration. Its compact form factor fits tight mechanical rooms and equipment cabinets.

Key Features

• 0 to 60 psi analog pressure range with 3-2-3 percent of scale accuracy
• 2.5-inch dial diameter for clear reading at close range
• Stainless steel case protects against corrosion and physical damage
• Stainless steel Bourdon tube and wetted parts resist mild corrosive media
• Lower-mount 1/4-inch NPT connection for standard gauge port installations
• Dry gauge construction — no fill fluid to leak or degrade over time

Compatibility

Designed as a standard replacement or new-installation analog pressure gauge for any system with a lower-mount 1/4-inch NPT gauge port rated within the 0 to 60 psi operating range.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician. Shut off system pressure and relieve all residual pressure before removing an existing gauge or threading in this unit. Apply thread sealant or PTFE tape to the NPT threads per local plumbing code — do not overtighten, as stainless fittings can gall. Verify the system operating pressure does not exceed the gauge maximum before placing the system back in service.
