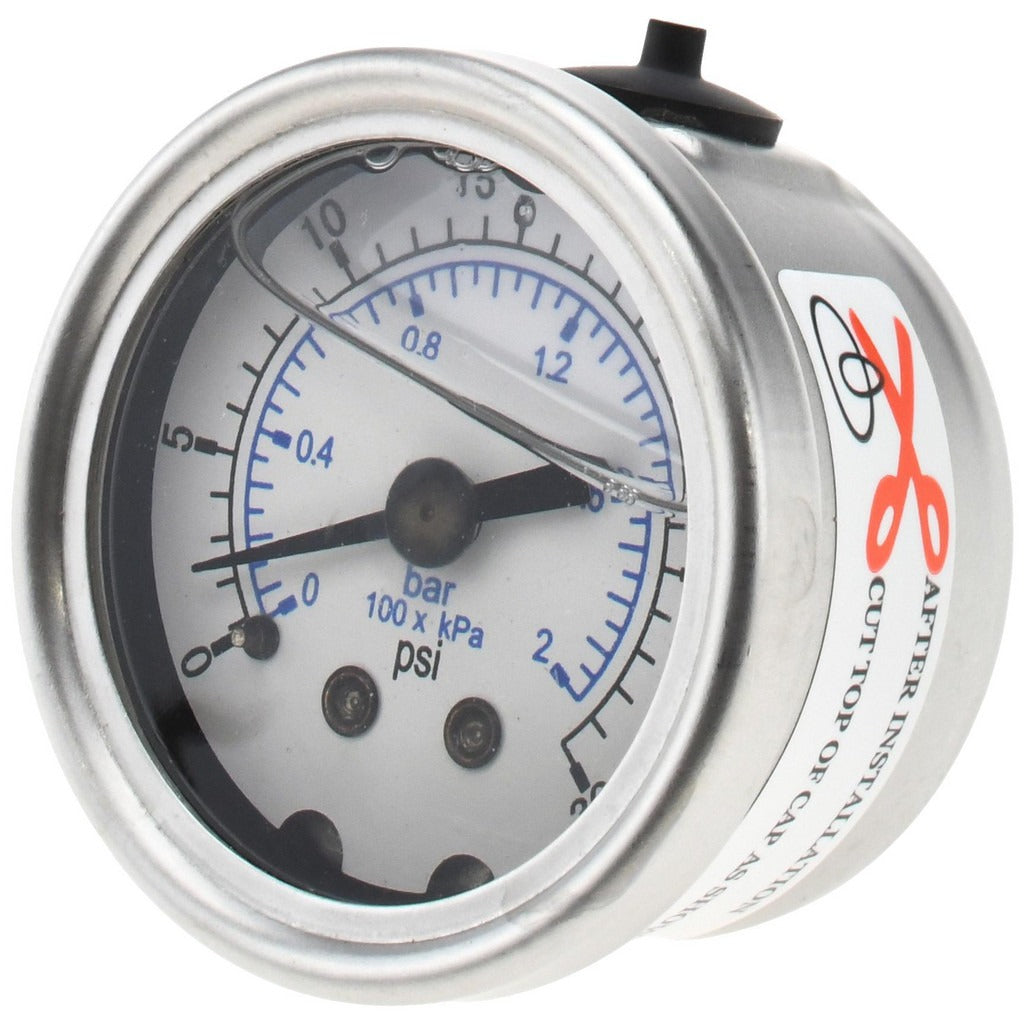

Value Collection 116AB15030 Pressure Gauge 30 Psi 1.5 in Dial

Product Description

The Value Collection 116AB15030 is a liquid-filled analog pressure gauge designed for use in systems where accurate, steady pressure readings are required. It features a 1.5-inch dial, a 0 to 30 psi range, and a 1/8-inch NPT center back mount connection. The stainless steel case and stainless steel wetted parts provide corrosion resistance in demanding fluid and gas service environments. Glycerine fill dampens pointer vibration and reduces wear on the Bourdon tube, improving readability on equipment subject to pulsation or mechanical vibration. Accuracy is rated at plus or minus 3-2-3 percent of scale. HVAC technicians, plumbers, and industrial maintenance trades use gauges of this type for low-pressure monitoring applications.

This gauge is suited for residential and light commercial plumbing, HVAC, and hydraulic applications where a compact, back-mount gauge is needed in tight panel or manifold installations. The center back mount configuration allows flush or panel mounting. The NPT thread is the standard for plumbing and fluid power connections across North American trade work. Its small dial diameter makes it appropriate for inline monitoring on equipment with limited clearance around the gauge port.

Key Features

• Liquid-filled design with glycerine fill dampens vibration and extends service life
• Stainless steel case and stainless steel wetted parts for corrosion resistance
• 0 to 30 psi range with plus or minus 3-2-3 percent of scale accuracy
• 1.5-inch analog dial for compact installations
• 1/8-inch NPT center back mount for panel or inline mounting
• Analog Bourdon tube mechanism with no external power required

Compatibility

Designed as an OEM-style replacement or new-install gauge for low-pressure plumbing, HVAC, and fluid system applications using standard 1/8-inch NPT back-mount gauge ports.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified maintenance professional. Depressurize and isolate the system before removing or installing any pressure gauge. Apply thread sealant appropriate to the service fluid to the NPT threads before installation. Do not over-tighten the NPT connection, as this can crack the gauge socket or distort the case.
