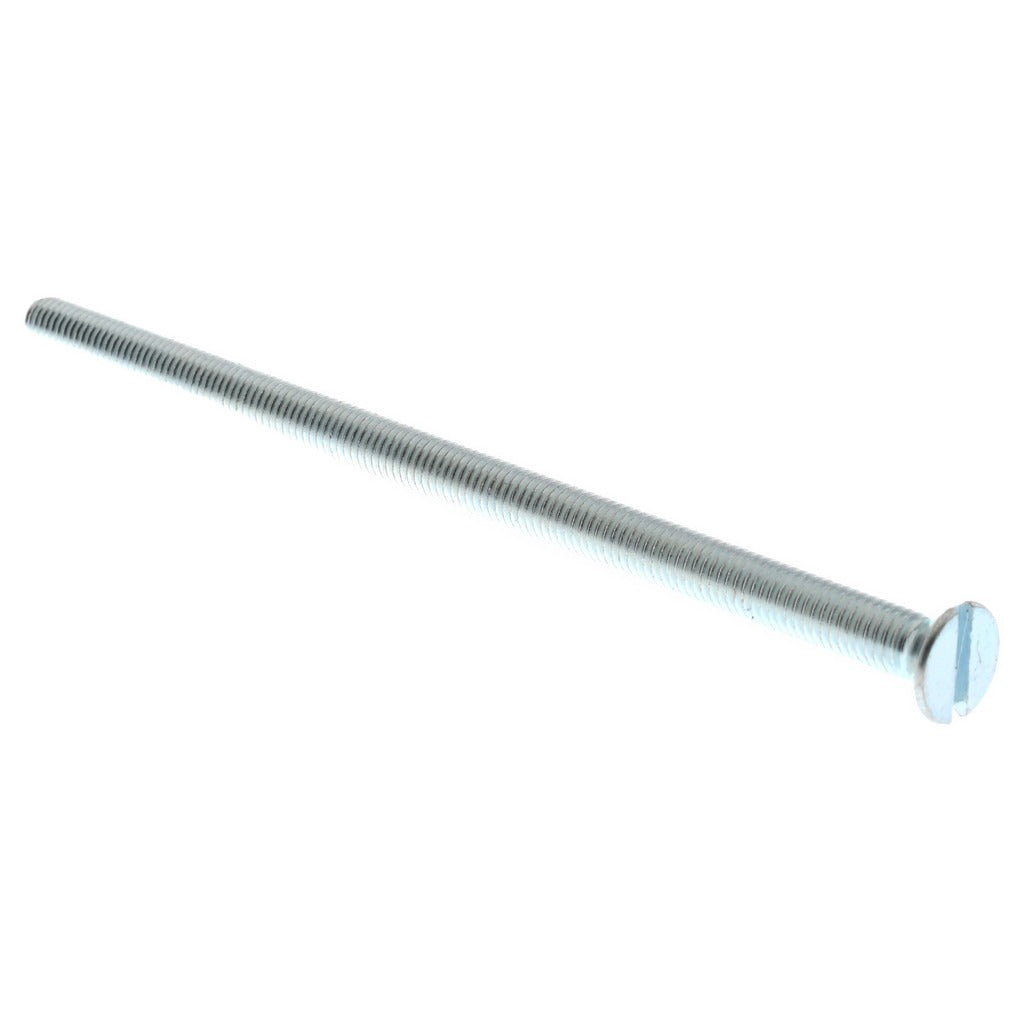

Value Collection 1164MSF 10-32x4in Flat Head Slotted Machine Screw

Product Description

The VALUE COLLECTION 1164MSF is a 10-32 x 4 inch overall length flat head machine screw designed for general industrial and mechanical fastening applications. The slotted drive accepts a standard flat-blade screwdriver, making it a familiar choice for maintenance and assembly work. Manufactured from steel with a zinc finish, it meets ASME B18.6.3 and SAE J82 standards for dimensional accuracy and material grade. The flat head profile sits flush with the mating surface when properly countersunk, which is useful in assemblies where a low-profile fastener is required. This screw is sold in minimum order quantities of 100 pieces per order.

This fastener is suited for light- to medium-duty mechanical assemblies across industrial, commercial, and trade applications. Common uses include panel fastening, equipment enclosures, electrical boxes, and general machine assembly where a flush-mount, 10-32 threaded fastener is specified. The zinc finish provides a basic level of corrosion resistance for indoor and sheltered environments. Machinists, maintenance technicians, electricians, and assembly workers regularly use this screw type when building or servicing equipment that calls for a unified fine thread in the No. 10 diameter range.

Key Features

• 10-32 unified fine thread for precise, secure engagement in tapped holes
• 4 inch overall length with full length under head measurement of 4 inches
• Flat head profile sits flush when installed in a countersunk hole
• Slotted drive compatible with standard flat-blade screwdrivers
• Steel construction with zinc finish for corrosion resistance in dry environments
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards

Compatibility

Designed as a standard 10-32 unified fine thread machine screw for use in any tapped or threaded hole conforming to that specification, without washer, across general industrial and mechanical assembly applications.

Installation Notes

Installation is performed by threading into a properly tapped 10-32 hole; ensure the receiving hole is countersunk at the correct angle to accept the flat head flush. Use a flat-blade screwdriver sized to fit the slot fully to avoid cam-out and slot damage. Do not over-torque steel screws in softer parent materials such as aluminum or plastic. Verify thread engagement length is sufficient for the load requirements of the assembly before finalizing installation.
