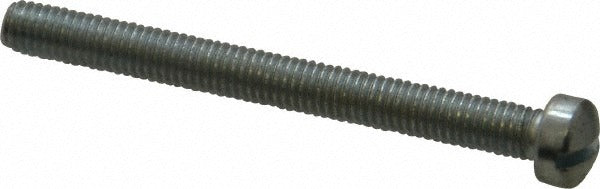

Value Collection 1132MSL 10-32 X 2 in Fillister Slotted Machine Screw

Product Description

The VALUE COLLECTION 1132MSL is a 10-32 unified fine thread machine screw designed for precision fastening applications in metal assemblies. It features a fillister head profile with a slotted drive and measures 2 inches in length under head. Manufactured from steel with a zinc finish, this screw meets ASME B18.6.3 and SAE J82 dimensional and material standards. The fillister head provides a taller head height and deeper slot than a pan head, making it a preferred choice when a positive driver grip is needed in tight or countersunk clearance situations. Sold in multiples of 100.

This screw is suited for general mechanical and structural assembly work where a unified fine thread fastener is required. Typical applications include machine frames, electrical enclosures, panel mounting, and light industrial equipment. The zinc finish provides basic corrosion resistance for indoor or sheltered environments. Maintenance technicians, electricians, and mechanical assemblers working with standard inch-series hardware will find this screw appropriate for a wide range of service and production tasks.

Key Features

• 10-32 unified fine thread for reliable engagement in tapped holes
• Fillister head offers a tall head height and deep slotted drive recess
• 2-inch length measured under head per ASME B18.6.3
• Steel construction with zinc finish for basic corrosion resistance
• Meets ASME B18.6.3 and SAE J82 fastener standards
• No washer — flat bearing surface under head

Compatibility

Designed as a standard inch-series machine screw for use in any tapped or clearance-hole application requiring a 10-32 thread and fillister head profile.

Installation Notes

Install using a standard flat-blade screwdriver sized to the slot width. Ensure the mating tapped hole is clean and free of debris before driving. Do not overtighten — fine-thread fasteners in steel are susceptible to thread galling if driven without proper torque control. Follow applicable equipment manufacturer specifications for torque requirements.
