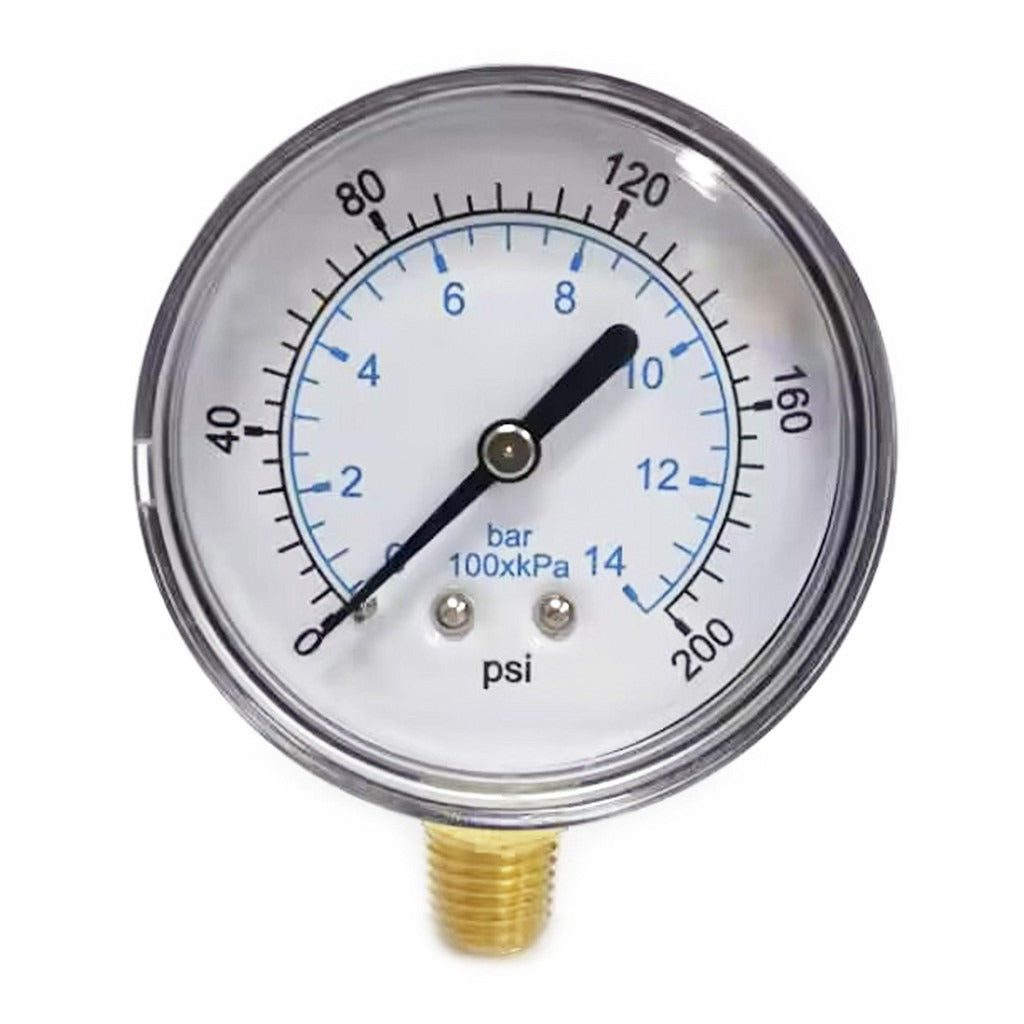

Value Collection 111CL25200 Pressure Gauge 200 Psi

Product Description

The VALUE COLLECTION 111CL25200 is an analog pressure gauge designed for general-purpose pressure monitoring in plumbing, HVAC, and industrial fluid systems. It features a 2.5-inch dial with a 0 to 200 psi range and a lower-mount 1/4-inch NPT connection. The ABS case houses a bronze Bourdon tube and brass wetted parts, making it suitable for compatibility with a wide range of non-corrosive fluids and gases. Accuracy is rated at plus or minus 3-2-3 percent of scale. This gauge is a non-liquid-filled unit, appropriate for applications where ambient vibration is low and easy readability is needed at a glance.

This gauge is suited for residential and light commercial installations where technicians need a compact, reliable pressure readout. Common applications include monitoring supply pressure on water lines, testing system pressure in HVAC refrigerant circuits with an appropriate adapter, and verifying pressure at pump outlets or filter housings. The lower-mount configuration positions the dial face upright when the gauge is threaded directly into a tee, valve, or manifold port. Plumbers, HVAC technicians, and pipefitters will find this gauge useful as a permanent installation instrument or as a secondary monitoring point on a system.

Key Features

• 0 to 200 psi range with plus or minus 3-2-3 percent of scale accuracy
• 2.5-inch analog dial for easy on-site readability
• Lower-mount 1/4-inch NPT connection for direct inline installation
• Bronze Bourdon tube with brass wetted parts for durability with common fluids
• ABS case construction keeps overall weight low at 0.2 pounds
• Non-liquid-filled design suited for low-vibration environments

Compatibility

Designed as a general-purpose replacement or new-install pressure gauge for systems using standard 1/4-inch NPT lower-mount gauge ports, including water supply lines, compressed air systems, and plumbing pressure test points.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician after the system has been fully depressurized and isolated. Apply thread sealant tape or pipe dope to the NPT threads before threading the gauge into the port by hand, then snug with a wrench — do not overtighten, as the ABS case can crack if excessive torque is applied to the body. Verify the pressure range of the system does not exceed 200 psi before placing the gauge in service. Refer to applicable IPC or IFGC guidelines for inspection and test pressure requirements on the systems being serviced.
