Value Collection 111CL25160 Pressure Gauge 160 Psi

Product Description

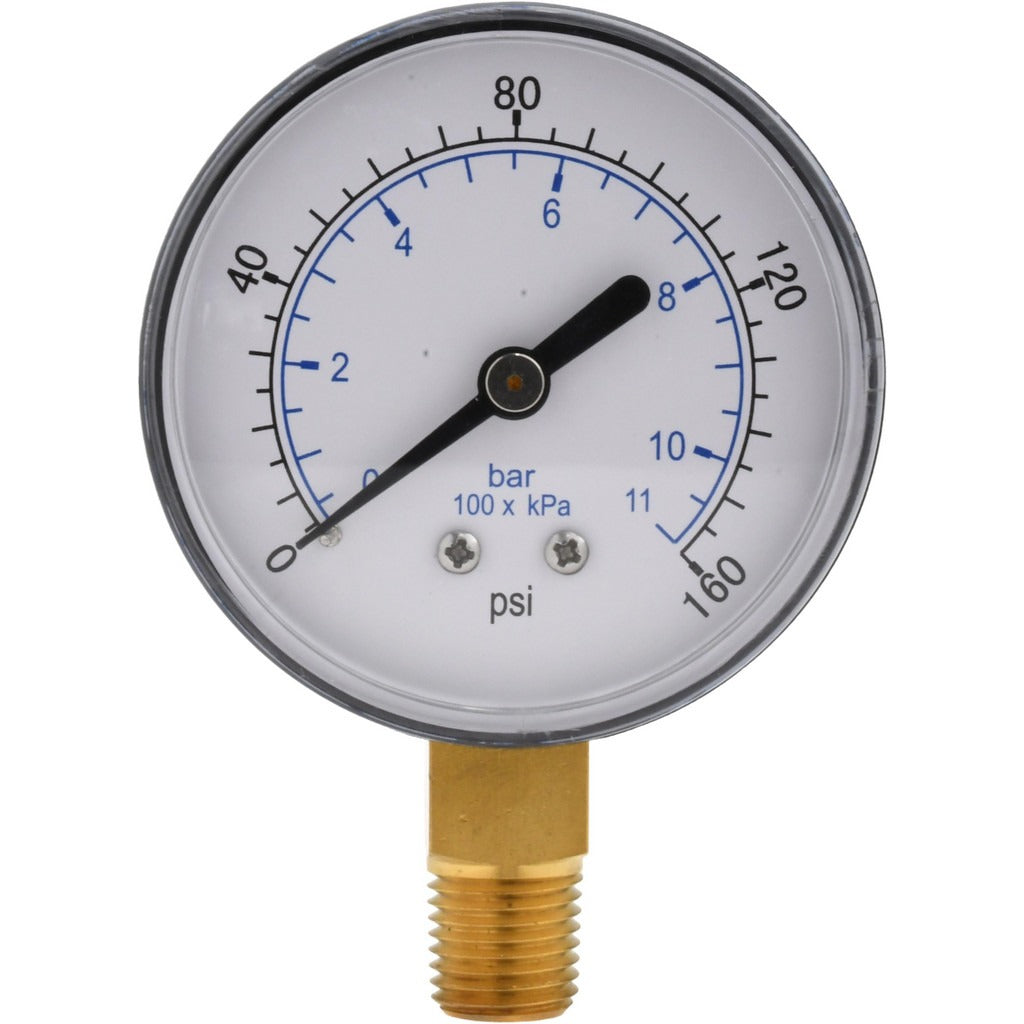

The VALUE COLLECTION 111CL25160 is an analog pressure gauge designed for general-purpose fluid system monitoring. It features a 2.5-inch dial with a measurement range of 0 to 160 psi and connects via a 1/4-inch NPT lower-mount fitting. The case is constructed from ABS plastic with brass wetted parts and a bronze Bourdon tube. Accuracy is rated at plus or minus 3-2-3 percent of scale. This gauge is not liquid filled, making it a straightforward, dry-service instrument suited for plumbing, HVAC, and light industrial applications.

This gauge is appropriate for residential and light commercial service work where a compact, lower-mount dial gauge is needed to monitor system pressure. The lower-mount configuration positions the process connection at the bottom of the gauge body, which suits panel-mount or pipe-tee installations. It is commonly installed by plumbers, HVAC technicians, and mechanical contractors on water supply lines, compressed air systems, hydronic loops, and similar low-to-medium pressure circuits operating within the 0 to 160 psi range.

Key Features

• 0 to 160 psi measurement range covers a wide range of residential and commercial fluid systems
• 2.5-inch analog dial for clear, at-a-glance pressure readings
• 1/4-inch NPT lower-mount connection for direct pipe or tee installation
• Brass wetted parts and bronze Bourdon tube for corrosion resistance in water and air service
• ABS case construction — lightweight and impact-resistant for general service environments
• Plus or minus 3-2-3 percent of scale accuracy meets standard requirements for utility monitoring

Compatibility

Designed as a general-purpose replacement or new-installation dry pressure gauge for plumbing, HVAC hydronic, and compressed air systems using standard 1/4-inch NPT lower-mount connections.

Installation Notes

Installation should be performed by a qualified plumber or mechanical technician in accordance with applicable local codes. Depressurize and isolate the system completely before removing any existing gauge or installing this unit. Apply thread sealant tape or pipe compound to the NPT male threads — do not overtighten, as ABS gauge cases can crack if excessive torque is applied to the connection. Verify system operating pressure does not exceed the 160 psi maximum rating of this gauge.
