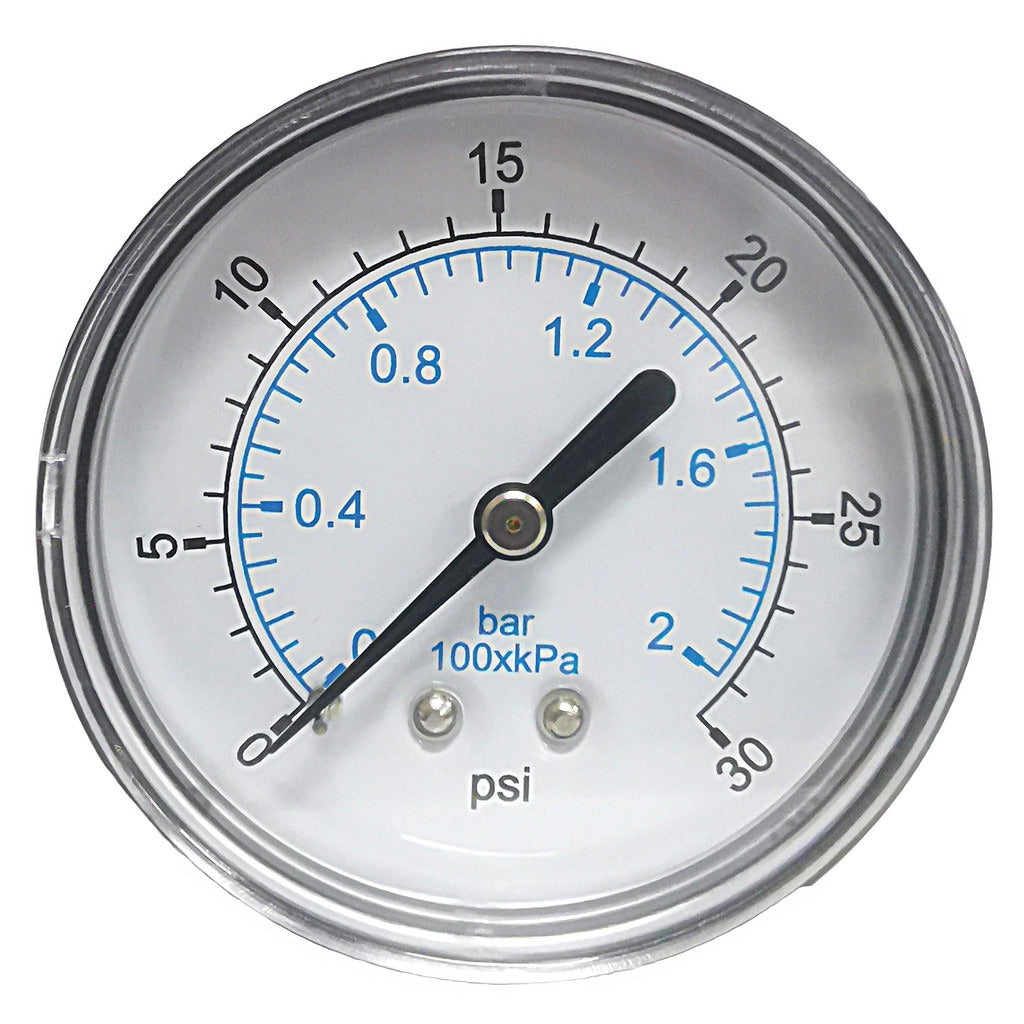

Value Collection 111CB25030 Pressure Gauge 30 Psi

Product Description

The VALUE COLLECTION 111CB25030 is an analog pressure gauge designed for monitoring system pressure in plumbing, HVAC, and light industrial applications. It features a 2.5-inch dial with a 0 to 30 psi range and a 1/4-inch NPT center back mount connection. The case is constructed from ABS plastic, and all wetted parts are brass, making it suitable for use with common water and air systems. A bronze Bourdon tube drives the analog needle movement. This gauge is a dry (non-liquid-filled) unit, keeping it lightweight at 0.2 pounds and straightforward to install without fluid handling concerns.

This gauge fits residential and light commercial service scenarios where a compact, readable pressure display is needed at a panel, manifold, or supply line. The center back mount configuration allows flush or panel-style installation where the pipe or port enters directly from behind the gauge face. Typical applications include water supply lines, compressed air systems, and HVAC hydronic loops where pressures do not exceed 30 psi. The 2.5-inch dial provides adequate readability in close-quarters installations common in mechanical rooms and utility spaces.

Key Features

• 0 to 30 psi range with plus or minus 3-2-3 percent of scale accuracy
• 2.5-inch analog dial for clear, direct reading
• 1/4-inch NPT center back mount connection for panel or inline installation
• Brass wetted parts for compatibility with water and air media
• Bronze Bourdon tube construction
• ABS case, dry fill, lightweight at 0.2 pounds

Compatibility

Designed as a standard replacement or new-installation analog pressure gauge for plumbing, HVAC hydronic, and compressed air systems requiring a 1/4-inch NPT center back mount connection and a 0 to 30 psi measurement range.

Installation Notes

Installation is performed by a licensed plumber or HVAC technician. Depressurize and isolate the line before removing or installing the gauge. Apply appropriate thread sealant or PTFE tape to the NPT threads and tighten to snug plus a partial turn by hand, avoiding over-torquing the brass fitting. Verify zero reading before returning the system to operating pressure.
