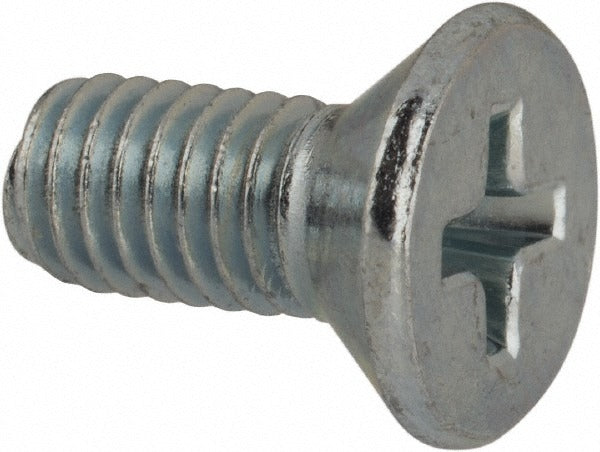

Value Collection 1107MPF 10-32 Flat Head Phillips Machine Screw

Product Description

The VALUE COLLECTION 1107MPF is a 10-32 unified fine thread machine screw with a flat head and Phillips drive, designed for general-purpose mechanical fastening in light industrial and trade applications. Manufactured from steel with a zinc finish, this screw carries a Grade J82 designation per ASME B18.6.3 and SAE J82 standards. The overall length is 7/16 inches, measured from tip to the top of the head. It is suited for use in panel assembly, equipment housings, and control cabinet work where a flush-sitting fastener is required.

This machine screw is commonly used by electricians, HVAC technicians, and mechanical contractors for securing covers, brackets, and sub-panels in both residential and light commercial equipment. The flat head seats flush against the mating surface, making it appropriate for applications where protrusion clearance is a concern. It is sold in multiples of 100 units per order, with a package quantity of 1.

Key Features

• 10-32 unified fine thread for positive thread engagement in standard tapped holes
• Flat head profile seats flush with the mating surface
• Phillips drive compatible with standard and power screwdrivers
• Steel construction with zinc finish for corrosion resistance in indoor applications
• Grade J82 per ASME B18.6.3 and SAE J82 fastener standards
• Sold without washer — bare fastener as specified

Compatibility

Designed as a standard 10-32 flat head Phillips machine screw suitable for any application requiring ASME B18.6.3 compliant fasteners with a 7/16-inch overall length and unified fine thread pattern.

Installation Notes

Installation is performed by electricians, HVAC technicians, or mechanical contractors using a Phillips screwdriver or compatible power driver bit. Ensure the mating hole is properly tapped to 10-32 UNF before driving the fastener. Do not overtighten — use appropriate torque for the mating material to avoid thread stripping. Follow applicable NEC or equipment manufacturer guidelines when fastening electrical enclosures or control panels.
