Value Collection 11002330 Simple Indexing Spacer 24 Position

Product Description

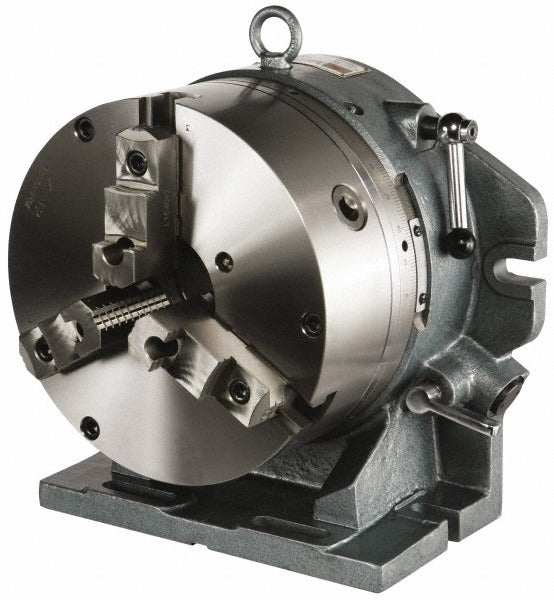

The VALUE COLLECTION 11002330 is a simple indexing spacer designed for use with 6.5-inch chuck setups on manual milling machines, rotary tables, and dividing head applications. It provides 24 fixed indexing positions, allowing machinists to rotate workpieces in precise, repeatable angular increments without the need for a full dividing head assembly. The unit stands 5.12 inches at centerline height and features a 1.73-inch chuck through hole for workpiece or arbor clearance. At 64 pounds, this is a robust, shop-floor-grade tooling component intended for use by experienced machinists and toolroom personnel.

This spacer is suited for light to medium production milling, drilling, and grinding setups where repeated angular positioning is required. The 24-position indexing pattern supports 15-degree increment spacing, making it practical for hex, square, and other common multi-flat workpiece operations. The 6-inch face plate diameter provides a stable mounting interface. It is intended for use without an included chuck, allowing the operator to mount an existing compatible chuck to the face plate.

Key Features

• 24 indexing positions for repeatable 15-degree angular increments
• 6.5-inch chuck diameter capacity with 6-inch face plate
• 1.73-inch chuck through hole accommodates bar stock or arbors
• 5.12-inch centerline height for standard machine table clearance
• Simple indexing design requires no differential gearing or index plates
• Chuck not included, allowing use with existing compatible tooling

Compatibility

Designed as a direct-mount simple indexing spacer compatible with 6.5-inch chucks; no specific machine model compatibility data was provided by the manufacturer for this item.

Installation Notes

Installation should be performed by a qualified machinist familiar with rotary tooling and workholding setups. The machine spindle and any associated power feeds must be fully de-energized and locked out before mounting or adjusting the spacer. Verify face plate bolt pattern and thread specs match the intended chuck before assembly. Ensure the unit is properly indicated and trammed to the machine table before beginning any indexing operation.
