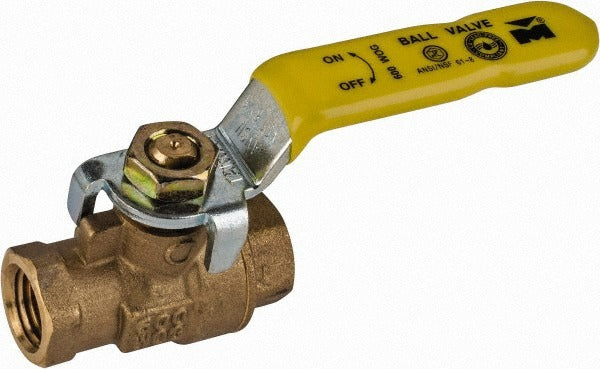

Value Collection 107-824NL 3/4 in Full Port Brass Ball Valve

Product Description

The VALUE COLLECTION 107-824NL is a 3/4-inch full-port packing gland ball valve designed for manual shutoff and flow control in plumbing and HVAC piping systems. The brass body provides corrosion resistance in both potable water and hydronic applications. A polytetrafluoroethylene (PTFE) seat delivers low-friction operation and a reliable seal across repeated cycles. The lever handle allows fast quarter-turn actuation for quick isolation during service or system balancing. Full-port geometry minimizes pressure drop across the valve, making it well-suited for applications where flow efficiency matters. Licensed plumbers and HVAC technicians are the primary installers of this valve type.

This valve is sized for 3/4-inch IPS pipe connections and is typically installed in residential and light commercial water supply lines, hydronic heating circuits, and HVAC equipment isolation service points. The full-port design makes it appropriate for installations where maintaining full pipe bore is required by system design or local code. The IPS end connection is compatible with standard threaded pipe installations using NPT fittings common in domestic plumbing and mechanical systems.

Key Features

• Full-port design maintains full pipe bore for minimal flow restriction
• Brass body construction for durability and corrosion resistance
• PTFE seat provides low-friction sealing and long service life
• Lever handle enables quick quarter-turn open and close operation
• 3/4-inch IPS end connections for standard threaded pipe compatibility
• Packing gland design allows stem seal adjustment without valve removal

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/4-inch IPS threaded pipe systems in residential and light commercial plumbing and HVAC applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before installing or replacing the valve. Use thread sealant tape or pipe dope rated for the system fluid on all threaded connections. Do not overtighten threaded connections, as brass fittings are susceptible to thread damage from excessive torque.
