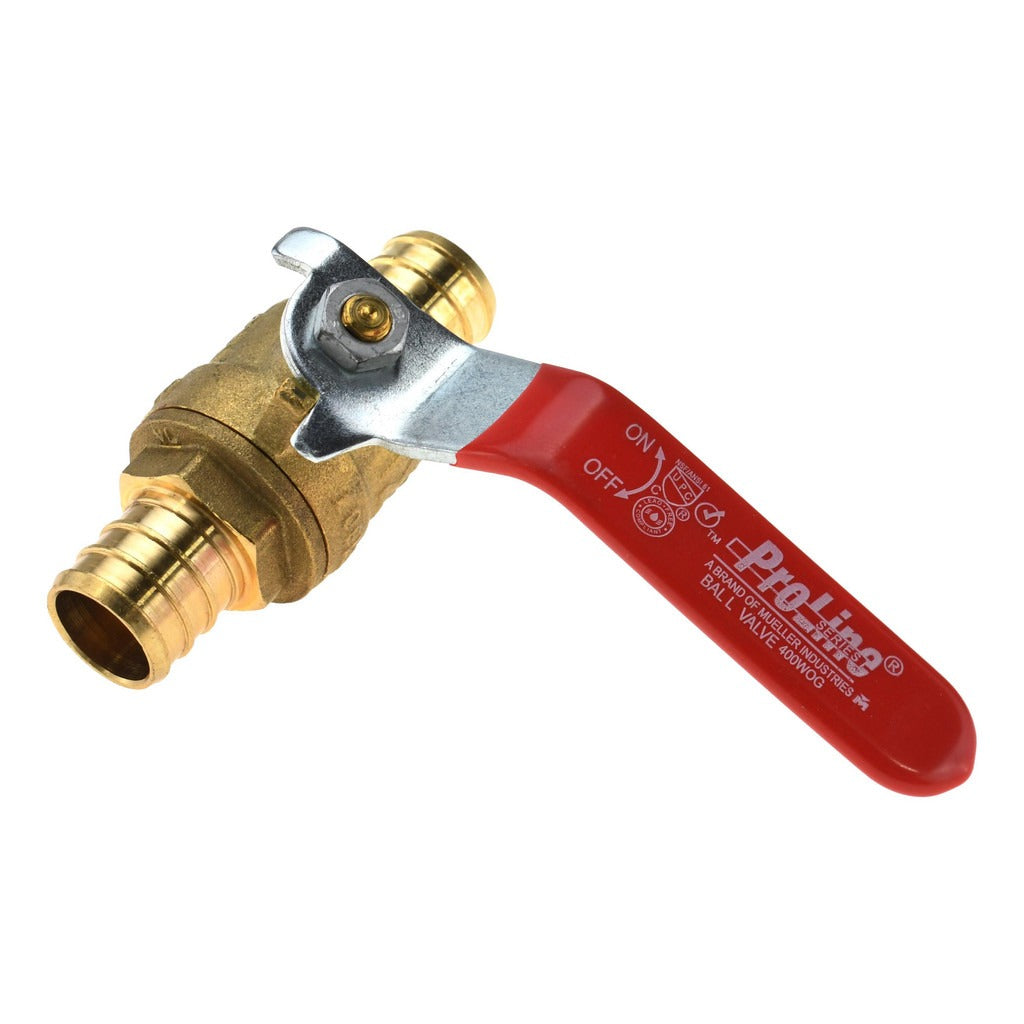

Value Collection 107-344NL 3/4 Inch Pex Full Port Ball Valve

Product Description

The VALUE COLLECTION 107-344NL is a standard manual ball valve designed for 3/4 inch PEX pipe connections. Built with a brass body and brass seat, this full port valve delivers unrestricted flow when open, making it well suited for residential plumbing, hydronic heating loops, and PEX distribution systems. The lever handle allows quick quarter-turn operation for positive shutoff. At 0.441 pounds, the valve is compact and easy to handle during rough-in or retrofit work. Licensed plumbers and hydronic system installers are the primary users of this valve type.

This ball valve is used in residential and light commercial plumbing systems that incorporate PEX tubing. Common applications include domestic hot and cold water supply lines, radiant floor heating manifold branch lines, and zone isolation in PEX-based hydronic systems. The full port design maintains full pipe bore diameter, minimizing pressure drop across the valve. The lever handle provides a clear visual indication of open or closed position, which is useful in mechanical rooms and utility spaces where multiple valves are installed in close proximity.

Key Features

• Full port design maintains unrestricted flow and minimizes pressure drop
• Brass body and brass seat for corrosion resistance in potable water and hydronic service
• PEX end connection sized for 3/4 inch pipe
• Lever handle provides quarter-turn operation with clear open/closed indication
• Compact form factor at 3.5 inches length and 2.25 inches height

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/4 inch PEX plumbing systems in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before making any connections. Use the appropriate PEX crimp, clamp, or expansion fittings compatible with this valve end connection type. Do not overtighten or apply excessive force to the lever handle when operating the valve in pressurized systems.
