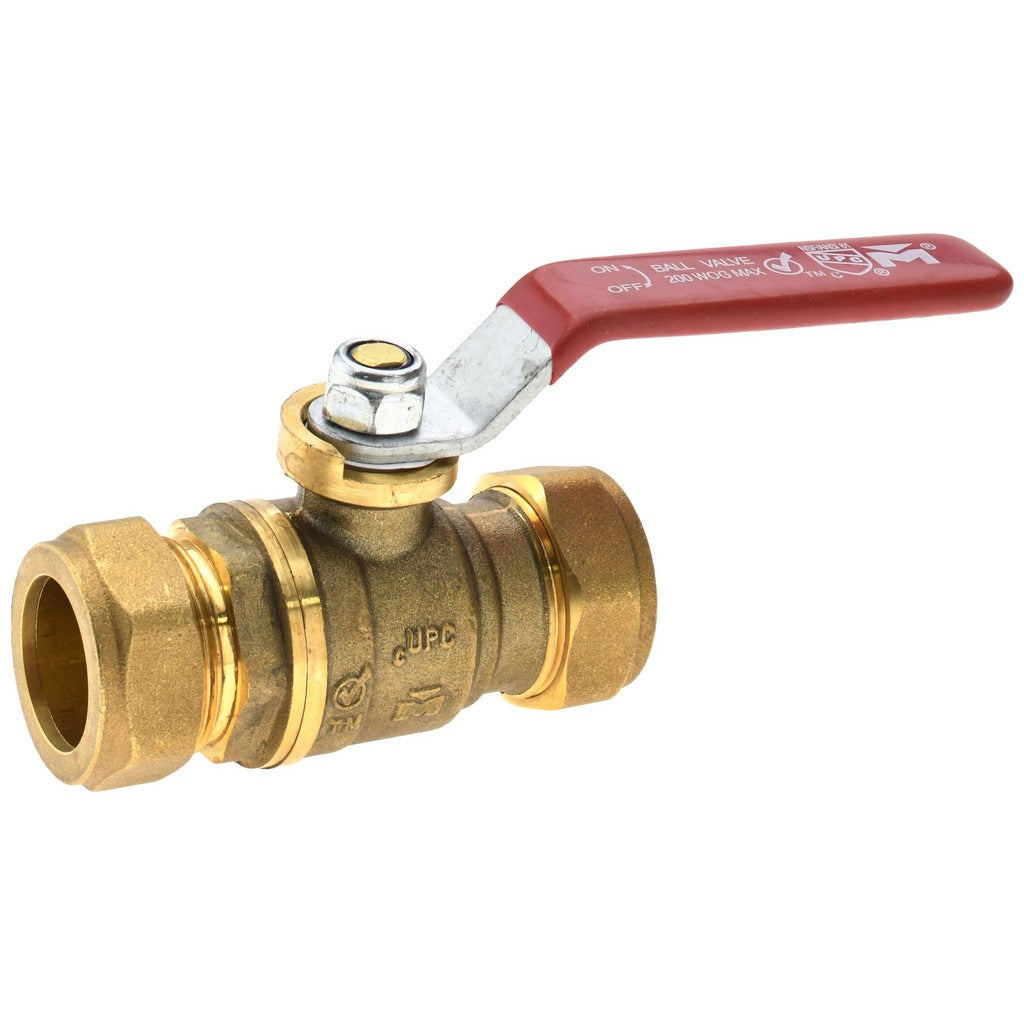

Value Collection 107-024NL Ball Valve 3/4 in Full Port Brass

Product Description

The VALUE COLLECTION 107-024NL is a standard manual ball valve designed for 3/4 inch pipe systems using compression end connections. The valve features a full port design, which means the internal bore matches the pipe diameter, minimizing flow restriction and pressure drop across the valve. The body and seat are both constructed from brass, offering solid corrosion resistance in typical plumbing and light HVAC hydronic applications. A lever handle allows for quick quarter-turn operation to open or close flow. This valve is installed by licensed plumbers and HVAC technicians in residential and light commercial systems.

This valve is suited for use in residential and light commercial plumbing systems where a reliable manual shutoff is required on 3/4 inch compression-type pipe runs. Common applications include domestic water supply lines, radiant heating distribution, and hydronic loop isolation. The compression end connection makes it compatible with copper tubing and certain cross-linked polyethylene tubing setups where appropriate fittings are used. The lever handle provides a clear visual indicator of valve position, which is useful in utility rooms, mechanical closets, and boiler rooms.

Key Features

• Full port design maintains full pipe bore for minimal flow restriction
• Brass body and brass seat for corrosion resistance in water service
• Compression end connection for tool-accessible installation on 3/4 inch pipe
• Quarter-turn lever handle for fast manual open and close operation
• Compact profile at 3.5 inches length and 2.25 inches height for tight installations

Compatibility

Designed as an OEM-style replacement or direct-install manual shutoff valve for 3/4 inch compression pipe connections in residential and light commercial plumbing and hydronic systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before beginning installation or removal. Ensure compression fittings are properly seated and the ferrule is fully engaged before tightening to prevent leaks. Do not overtighten compression nuts, as this can deform the ferrule and compromise the seal.
