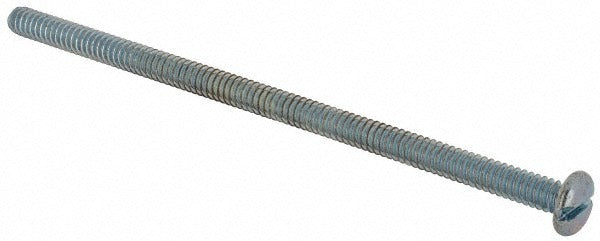

Value Collection 1064MSP 10-24 X 4 in Pan Head Slotted Machine Screw

Product Description

The VALUE COLLECTION 1064MSP is a 10-24 unified coarse thread machine screw with a pan head and slotted drive, intended for general mechanical assembly and fastening applications. Manufactured from steel with a zinc finish, this screw measures 4 inches in length under the head and conforms to ASME B18.6.3 and SAE J82 standards. The zinc coating provides basic corrosion resistance in indoor environments. At 0.0247 pounds per unit, the fastener is sized for medium-duty threaded metal assemblies where a low-profile pan head and simple slotted drive are specified. Licensed tradespeople and assembly technicians working across HVAC, electrical, plumbing, and general mechanical trades will find this a standard stocking fastener.

This machine screw is suited for use in sheet metal enclosures, electrical panels, junction boxes, equipment housings, and general mechanical assemblies requiring a 10-24 thread engagement. The pan head profile seats flush across flat surfaces without a washer, making it appropriate for applications where a wide bearing surface is needed but a countersunk recess is not available. The slotted drive is compatible with standard flat-blade screwdrivers and is commonly specified where simple, tool-accessible fastening is required. This screw ships in a package quantity of 1, with a minimum order quantity of 10 units.

Key Features

• 10-24 unified coarse thread for reliable engagement in tapped steel and brass inserts
• 4-inch length under head for deep-reach fastening in thick assemblies
• Pan head profile distributes clamping load across flat surfaces without a washer
• Slotted drive accepts standard flat-blade screwdrivers for easy field installation
• Zinc finish provides basic corrosion resistance suitable for dry indoor environments
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards

Compatibility

Designed as an OEM-style replacement or stocking fastener for any assembly requiring a 10-24 x 4-inch pan head slotted machine screw per ASME B18.6.3 and SAE J82 specifications.

Installation Notes

Install using a flat-blade screwdriver sized to the slot width to avoid camming out and damaging the drive recess. Ensure the mating thread is clean and free of debris before engagement to prevent cross-threading. Do not overtorque steel screws in aluminum or plastic tapped holes, as thread stripping can occur. Follow applicable NEC or equipment manufacturer guidelines when installing fasteners in electrical enclosures.
