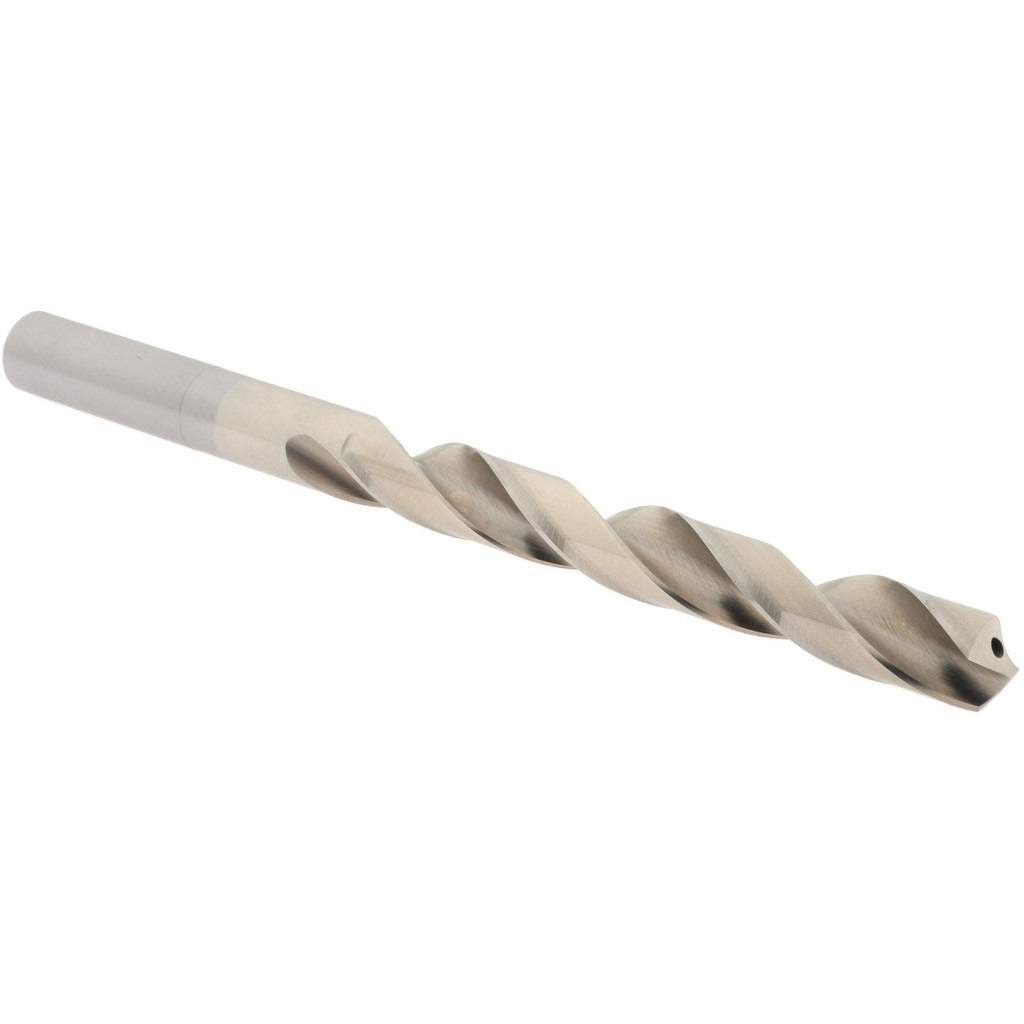

Value Collection 1057419 Taper Length Drill 0.7344in Hss-e

Product Description

The VALUE COLLECTION 1057419 is a taper length drill bit designed for general-purpose drilling applications where a longer flute length is needed for deeper hole depths. Built from HSS-E Cobalt material at the M35 grade, this bit delivers greater heat resistance and edge retention compared to standard HSS tooling. The 118-degree split-point geometry provides accurate starting without a center punch in most applications. With a 0.7344-inch (47/64) diameter and an overall length of 9.75 inches, it is suited for production and maintenance drilling where reach and precision matter. The bright, uncoated finish makes it appropriate for a wide range of workpiece materials.

This taper length drill bit fits drilling operations in metalworking, fabrication, and maintenance environments. The extended flute length of 6.375 inches allows the bit to clear chips effectively in deeper cuts. It is appropriate for use in drill presses and CNC drilling setups where rigidity and repeatability are required. The 47/64-inch shank diameter matches the listed drill diameter, making it compatible with standard chucks and collet systems that accept that shank size.

Key Features

• HSS-E Cobalt M35 construction for improved heat and wear resistance over standard HSS
• 118-degree drill point angle for general-purpose material entry
• 0.7344-inch (47/64) drill diameter with matching shank diameter
• 6.375-inch flute length supports deeper hole drilling with effective chip evacuation
• 9.75-inch overall length provides extended reach in taper length configuration
• Bright/uncoated finish compatible with a broad range of workpiece materials

Compatibility

Designed as an OEM-style replacement or direct-use taper length drill bit for general-purpose metalworking and fabrication drilling applications requiring a 47/64-inch diameter tool.

Installation Notes

This drill bit should be installed in a chuck or collet system rated for the 47/64-inch shank diameter before use. Ensure the drilling machine is powered off and properly secured before changing tooling. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain dimensional accuracy. Follow applicable workplace safety standards for rotating cutting tool operation.
