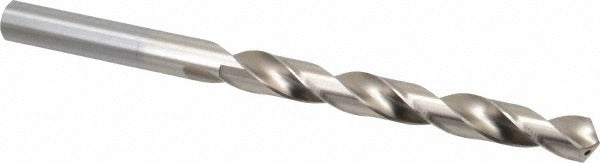

Value Collection 1057236 Taper Length Drill 0.5938 in Hss-e

Product Description

The VALUE COLLECTION 1057236 is a taper length drill bit designed for general-purpose drilling in metal, fabrication, and machining applications. Built from HSS-E Cobalt (M35 material grade), it delivers enhanced heat and wear resistance compared to standard high-speed steel tooling. The bit measures 0.5938 inches (19/32 inches) in diameter with a 118-degree split point angle, a flute length of 5.625 inches, and an overall length of 8.5 inches. The bright, uncoated finish keeps the surface free of any coating buildup, allowing direct contact with the workpiece material. This drill is suited for machinists, maintenance technicians, and metalworking shops requiring reliable performance on ferrous and non-ferrous materials.

This taper length drill bit is intended for use in drill presses, milling machines, and hand-held power tools where a longer reach is required beyond what a jobber-length bit provides. The 19/32-inch shank diameter matches the bit diameter, making it compatible with standard drill chucks and collet holders of appropriate size. It is appropriate for production drilling, maintenance and repair operations, and general shop use across light manufacturing and industrial environments.

Key Features

• HSS-E Cobalt construction (M35 grade) for improved heat resistance and tool life over standard HSS
• 118-degree drill point angle suits a wide range of general-purpose drilling applications
• Taper length body provides additional reach compared to standard jobber-length bits
• Bright, uncoated finish with no added coating layers
• 5.625-inch flute length supports chip evacuation in deeper holes
• Overall length of 8.5 inches with a 19/32-inch shank diameter

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks and collet systems sized to accept a 19/32-inch shank diameter on drill presses, lathes, and milling machines.

Installation Notes

This bit should be installed by qualified machinists or tool-and-die technicians familiar with rotating cutting tool safety. Ensure the drill chuck or collet is fully secured and rated for the shank diameter before operation. Always power down and de-energize the machine spindle before changing tooling. Use appropriate cutting fluid or coolant for the workpiece material to extend tool life and prevent overheating.
