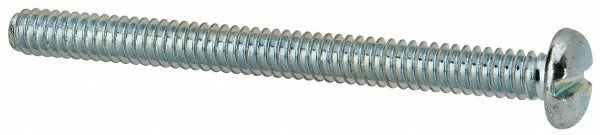

Value Collection 1036MSP Pan Head Machine Screw 10-24

Product Description

The VALUE COLLECTION 1036MSP is a 10-24 UNC pan head machine screw with a slotted drive, manufactured from steel with a zinc finish. Measuring 2.25 inches in length under head, this fastener conforms to ASME B18.6.3 and SAE J82 standards, making it a reliable choice for general-purpose mechanical assembly. The zinc coating provides basic corrosion resistance for indoor and light-duty applications. Sold in minimum order quantities of 100, these screws are suited for maintenance, repair, and assembly operations where a consistent, code-conforming fastener is required.

This machine screw is used in a wide range of mechanical and electrical assembly applications, including panel mounting, bracket attachment, and general equipment fabrication. The pan head profile provides a low-profile, wide-bearing surface suitable for through-hole and tapped-hole installations. It is commonly used by HVAC technicians, electricians, and general maintenance professionals working on sheet metal enclosures, control panels, and light structural assemblies.

Key Features

• 10-24 UNC thread for broad compatibility with standard tapped holes and hex nuts
• Pan head with slotted drive for installation with a standard flat-blade screwdriver
• 2.25 inches length under head per ASME B18.6.3 specification
• Steel construction with zinc finish for basic corrosion resistance
• Meets SAE J82 material grade standards for consistent mechanical properties
• No washer — designed for direct seating against the mating surface

Compatibility

Designed as a general-purpose 10-24 UNC machine screw suitable for use with standard tapped holes, threaded inserts, and hex nuts conforming to inch-system fastener specifications.

Installation Notes

Install using a flat-blade screwdriver sized to the slotted head to avoid cam-out and head damage. Confirm the mating thread is clean and properly tapped to 10-24 UNC before driving. Avoid over-torquing, as steel zinc-plated fasteners in thin sheet metal can strip threads or distort the panel. Follow applicable assembly or equipment manufacturer torque guidelines when specified.
