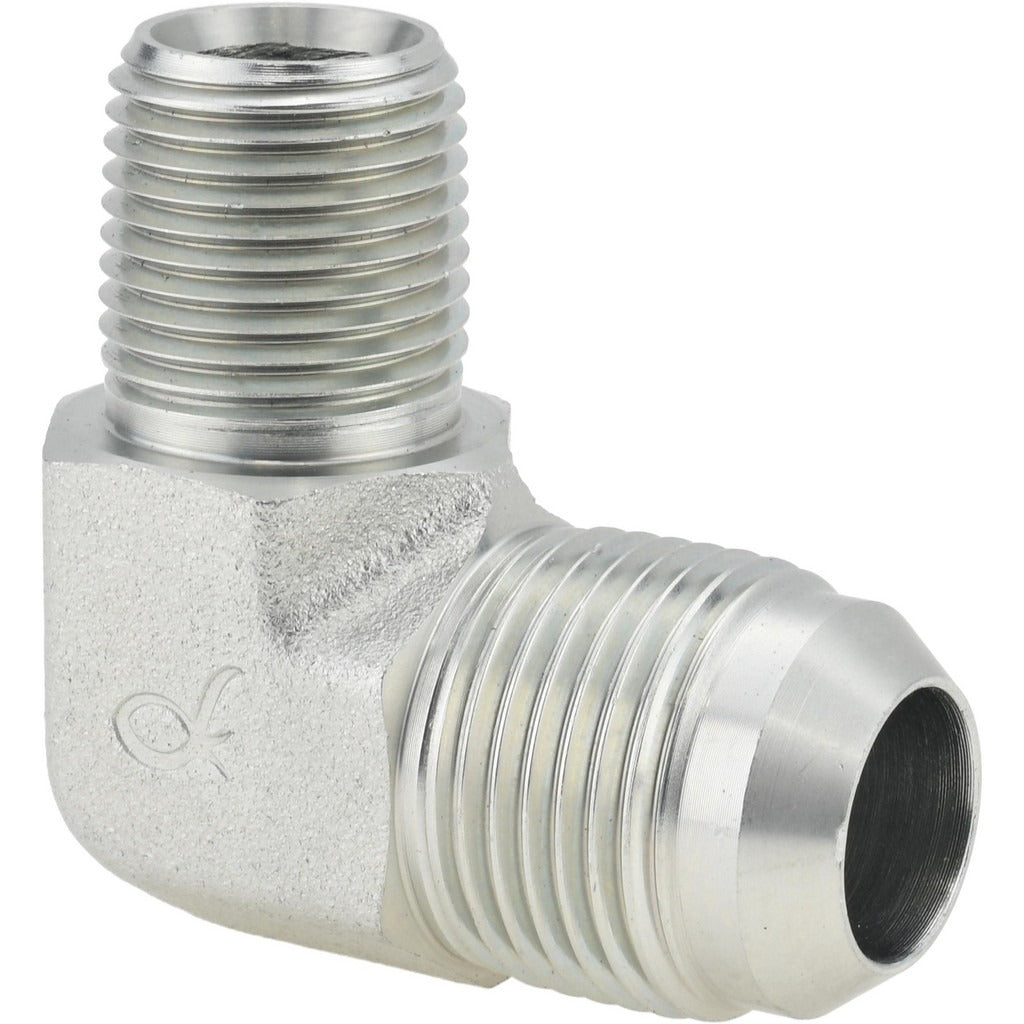

Value Collection 10341 Steel 90 Elbow 3/4 in Flare X Nptf

Product Description

The VALUE COLLECTION 10341 is a steel 90-degree flared tube elbow designed to change flow direction in hydraulic and fluid-transfer tubing lines. It accepts a 3/4-inch tube outer diameter on the flare end and connects to a NPTF port on the pipe end using a 1/2-14 x 1-1/16-12 thread configuration. The 37-degree flare angle conforms to standard SAE flare geometry, producing a leak-resistant metal-to-metal seat when properly torqued. This fitting is suitable for use in high-pressure fluid lines where a reliable, angled tube transition is required. Plumbers, hydraulic technicians, and fluid-system installers are the typical end users.

This elbow is used in industrial, commercial, and mobile-equipment fluid systems wherever a 90-degree directional change is needed between a flared tube and an NPTF-threaded port. Common install scenarios include hydraulic manifolds, compressed-air lines, fuel systems, and lubrication circuits. The NPTF thread form is designed to seal on thread engagement alone, making it well suited for applications where a separate sealant or washer may not be desired. Each package contains 2 fittings.

Key Features

• 90-degree elbow configuration for right-angle tube routing
• 37-degree flare angle meets standard SAE flare geometry for a metal-to-metal seat
• Flare x NPTF end connection — pipe thread seals on engagement without additional fittings
• 3/4-inch tube outer diameter on the flare end
• 1/2-14 x 1-1/16-12 thread sizing for precise port matching
• Steel construction for durability in pressurized fluid and hydraulic service

Compatibility

Designed as a standard SAE 37-degree flare fitting for use with 3/4-inch OD tubing and NPTF-threaded ports in hydraulic, fuel, and fluid-transfer systems.

Installation Notes

Installation should be performed by a qualified plumber, hydraulic technician, or fluid-system mechanic. Depressurize and drain the line completely before removing or installing any fitting. Inspect the flare seat and tube flare for nicks or out-of-round conditions before assembly, as surface defects compromise the metal-to-metal seal. NPTF threads are designed to seal on thread engagement; consult the system manufacturer's specifications before applying thread sealant compounds.
