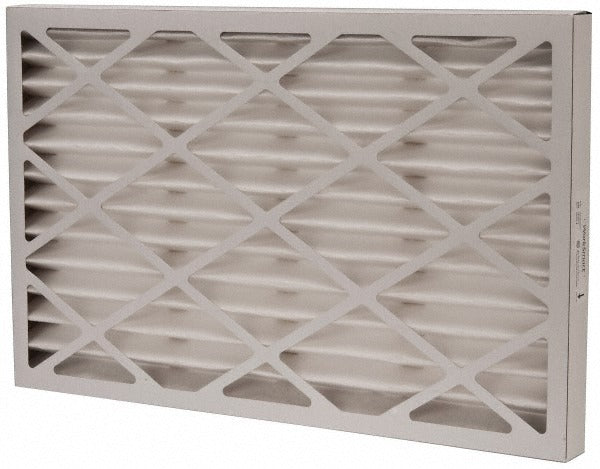

Value Collection 102-740-017 Pleated Air Filter Merv 8

Product Description

The VALUE COLLECTION 102-740-017 is a MERV 8 pleated air filter designed for residential and light commercial heating and air conditioning systems. It measures 16 inches by 25 inches with a nominal depth of 1-3/4 inches and delivers an airflow capacity of 1,400 CFM. The filter uses a synthetic media with exclusive vForm self-supported pleats that maintain pleat geometry without a wire backing, reducing airflow restriction. The frame is constructed from moisture-resistant beverage board for structural integrity in humid duct environments. Particle capture efficiency ranges from 35 to 45 percent, consistent with MERV 8 performance targeting pollen, dust mites, mold spores, and pet dander. This filter is suitable for HVAC technicians and facilities maintenance staff performing routine filter replacements.

This filter is rated for use with standard residential and light commercial heating and air conditioning units. The nominal face dimensions of 16 inches by 25 inches fit common return-air grille and filter-rack configurations. Actual dimensions are 24-1/2 inches by 16-1/2 inches by 1-3/4 inches, so verify slot clearance before installation. Maximum airflow velocity is rated at 500 feet per minute. Maximum operating temperature is 150 degrees F. It is well suited for standard-efficiency filter applications where MERV 8 filtration is specified by the equipment manufacturer or building standard.

Key Features

• MERV 8 rating with 35 to 45 percent particle capture efficiency per ASHRAE 52.2-2012
• Synthetic filter media with vForm self-supported pleats — no wire backing required
• Moisture-resistant beverage board frame resists deformation in high-humidity return-air applications
• 1,400 CFM airflow capacity with a low initial resistance of 0.26 inches water gauge
• Maximum operating temperature of 150 degrees F
• Listed to UL 900 and tested per ASHRAE 52.2-2012

Compatibility

Designed for use with standard residential and light commercial heating and air conditioning units accepting a 16-inch by 25-inch by 1-3/4-inch nominal filter size.

Installation Notes

Installation is typically performed by HVAC technicians or qualified maintenance personnel. Before replacing the filter, set the thermostat to off and shut down the air handler or furnace at the disconnect. Confirm the actual slot dimensions match the actual filter size of 24-1/2 inches by 16-1/2 inches by 1-3/4 inches before inserting. Install with the airflow arrow on the frame pointing toward the blower, and verify the filter seats flush against the rack to prevent bypass leakage.
