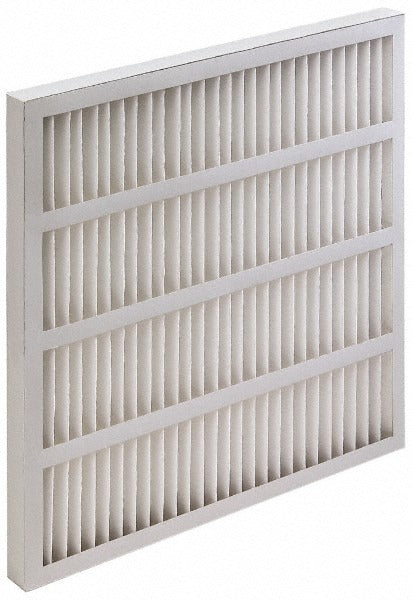

Value Collection 102-740-010 Pleated Air Filter 24x24x1 Merv 8

Product Description

The VALUE COLLECTION 102-740-010 is a MERV 8 pleated air filter designed for residential and light commercial heating and air conditioning systems. Built with a synthetic filter media and a moisture-resistant beverage board frame, it captures 35 to 45 percent of airborne particles at an initial resistance of 0.29 inches water gauge. The exclusive vForm self-supported pleat design maintains pleat spacing without a wire backing, delivering consistent airflow at up to 1,200 CFM. Licensed HVAC technicians and qualified installers use this filter as a standard-replacement media filter in forced-air systems.

This filter fits standard 24 x 24 x 1-inch filter slots in residential and light commercial HVAC air handlers and furnaces. The nominal dimensions are 24 x 24 x 1 inches, with actual dimensions of 23-3/8 x 23-3/8 x 1 inches. It is rated for use with heating and air conditioning units and is suited for applications requiring ASHRAE 52.2-2012-compliant filtration at a moderate efficiency level. The integrated frame adds structural rigidity for single-filter-slot installations.

Key Features

• MERV 8 rating with 35 to 45 percent particle capture efficiency per ASHRAE 52.2-2012
• Synthetic pleated media with vForm self-supported pleats for consistent pleat spacing
• Moisture-resistant beverage board frame with integrated construction
• Rated airflow up to 1,200 CFM at a maximum face velocity of 300 feet per minute
• Initial resistance of 0.29 inches water gauge; final resistance of 1.0 inch water gauge
• Maximum operating temperature of 150 degrees F

Compatibility

Designed as a standard-replacement pleated filter for residential and light commercial heating and air conditioning units with a 24 x 24 x 1-inch nominal filter opening.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified service personnel. Always shut down the air handler or furnace at the disconnect or breaker before removing or installing the filter. Confirm airflow direction arrow on the filter frame aligns with system airflow toward the blower. Follow the equipment manufacturer's recommended replacement interval and local codes for filter maintenance.
