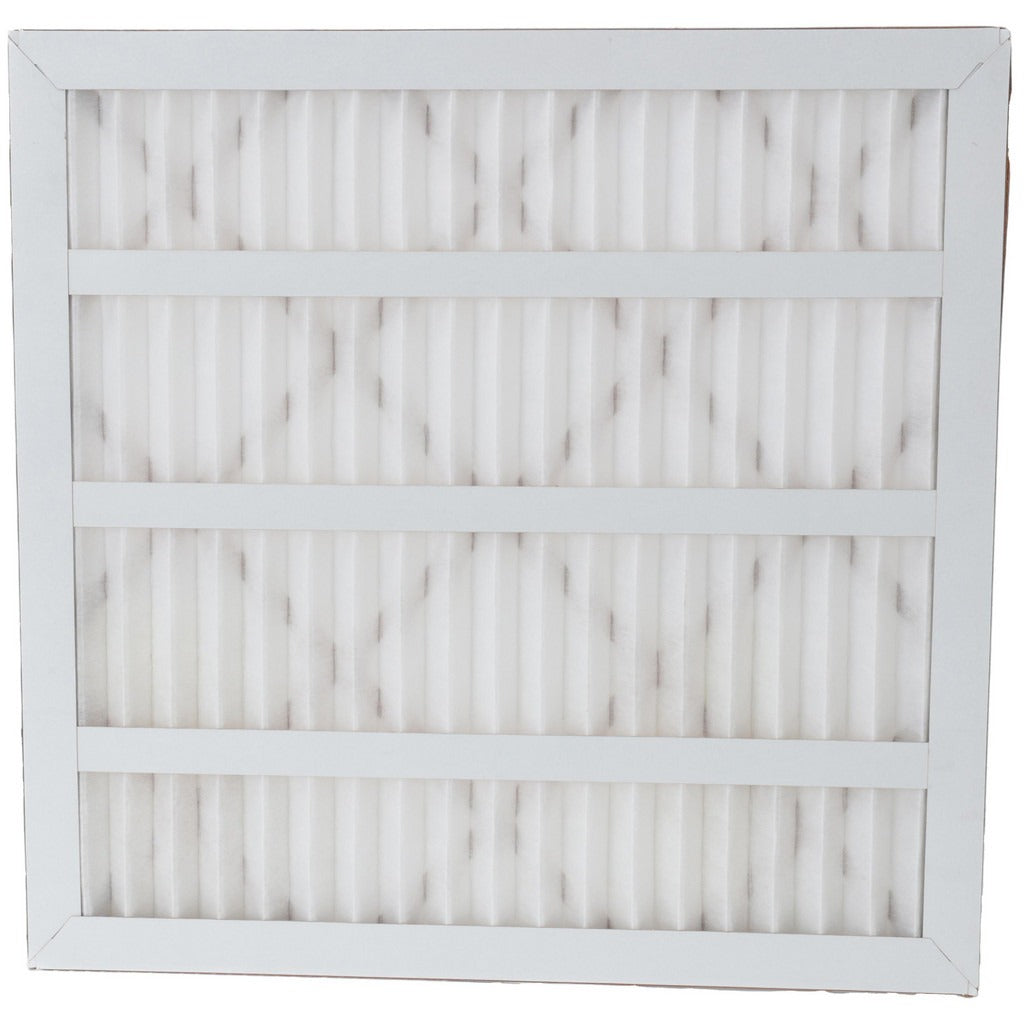

Value Collection 102-740-008 Pleated Air Filter Merv 8

Product Description

The VALUE COLLECTION 102-740-008 is a MERV 8 pleated air filter designed for residential and light commercial heating and air conditioning units. Nominal dimensions are 20 x 20 x 1 inches, with actual dimensions of 19-1/2 x 19-1/2 x 3/4 inches. The filter uses a synthetic media with an exclusive vForm self-supported pleat construction and is housed in a sturdy moisture-resistant beverage board frame. It captures 35 to 45 percent of targeted airborne particles per ASHRAE 52.2-2012 testing. HVAC technicians and service professionals install this filter as a standard replacement in forced-air systems.

This filter is rated for up to 840 CFM airflow with a maximum face velocity of 300 feet per minute and an initial resistance of 0.29 inches water gauge. It is suited for standard-capacity residential and light commercial heating and air conditioning applications. The 1-inch nominal depth makes it compatible with common single-inch filter slot configurations found throughout residential forced-air systems. A final resistance of 1.0 inch water gauge indicates the recommended end-of-service threshold.

Key Features

• MERV 8 rating with 35 to 45 percent particle capture efficiency per ASHRAE 52.2-2012
• Exclusive vForm self-supported pleats maintain media shape without wire backing
• Moisture-resistant beverage board frame for structural integrity in high-humidity environments
• Rated up to 840 CFM and 300 feet per minute maximum face velocity
• Low initial resistance of 0.29 inches water gauge reduces system static pressure impact
• Maximum operating temperature of 150 degrees F

Compatibility

Designed as an OEM-style replacement pleated filter for residential and light commercial heating and air conditioning units accepting a 20 x 20 x 1 inch nominal filter size.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified service personnel. Power down the air handler or furnace at the disconnect or breaker before accessing the filter compartment. Insert the filter with the airflow arrow on the frame pointing toward the blower. Replace the filter when final resistance reaches 1.0 inch water gauge or per the maintenance schedule for the system being serviced.
