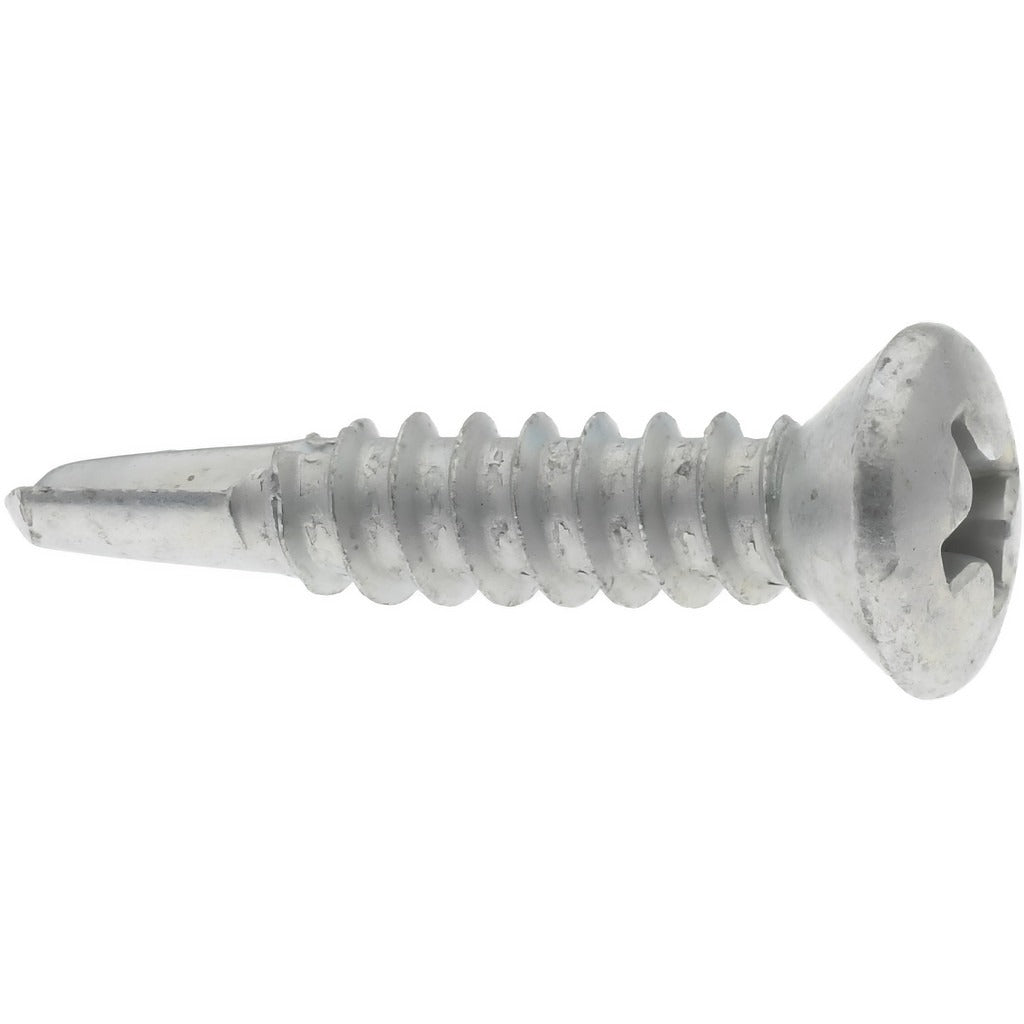

Value Collection 1016KPO No.10 Oval Head Self Drilling Screw

Product Description

The VALUE COLLECTION 1016KPO is a No. 10 self-drilling screw with an oval head and Phillips drive, designed for direct fastening into metal without a pre-drilled pilot hole. Built from AISI 1016/1024 grade steel with a zinc-plated finish, this screw delivers reliable corrosion resistance for interior and light exterior applications. The No. 2 drill point cuts through base material cleanly, reducing installation time. Overall length is 1 inch. This fastener meets ANSI B18.6.4, ASME B18.6.3, and SAE J78 standards, making it appropriate for controlled-specification assembly work in HVAC, electrical, and light structural trade applications.

This screw is suited for sheet metal attachment, light-gauge steel framing, ductwork, junction boxes, and similar assemblies where a self-drilling fastener is required. The oval head profile sits slightly proud of the surface, providing a finished appearance on exposed panels or covers. The Phillips drive is compatible with standard No. 2 bits, which are common across HVAC, plumbing, and electrical service kits. Minimum order quantity is 100 pieces per order, supplied as a single package quantity.

Key Features

• No. 10 screw size with 1 inch overall length for thin-gauge metal applications
• No. 2 drill point for self-drilling installation without a pilot hole
• Oval head with Phillips drive for a finished look and fast installation
• AISI 1016/1024 grade steel construction for consistent strength and machinability
• Zinc-plated finish for corrosion resistance in interior and protected exterior environments
• Meets ANSI B18.6.4, ASME B18.6.3, and SAE J78 fastener standards

Compatibility

Designed for use with light-gauge sheet metal, steel ductwork, electrical enclosures, and similar thin-material assemblies requiring a self-drilling No. 10 screw.

Installation Notes

Installation is performed with a No. 2 Phillips bit and a variable-speed drill or screw gun. Avoid over-driving, which can strip the head or deform the base material. Power down or de-energize any electrical enclosure or duct assembly before fastening. Follow applicable NEC or IFGC guidelines when securing components within mechanical or electrical systems.
