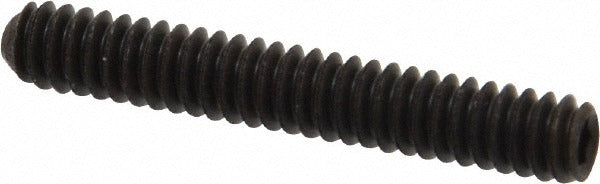

Value Collection 101269PR Set Screw 10-24 X 1-1/4 in Cup Point

Product Description

The VALUE COLLECTION 101269PR is a cup point set screw designed for mechanical assemblies requiring a secure, tamper-resistant hold without a protruding head. Manufactured from Grade 8 alloy steel, this fastener delivers high tensile strength suitable for demanding industrial and trade applications. The 10-24 UNC thread with an overall length of 1-1/4 inches and a 3/32-inch hex drive makes it compatible with standard hex keys. It is installed by machinists, maintenance technicians, and mechanical contractors working on shafts, collars, pulleys, and similar components where flush-mount retention is required.

This set screw is suited for use in light industrial machinery, HVAC equipment assemblies, electrical enclosure hardware, and general mechanical applications where a headless fastener is specified. The cup point geometry bites into the mating surface to resist rotation and axial movement, making it a practical choice in both original equipment manufacturing and field service replacement scenarios. Sold in a minimum order quantity of 100 pieces per order.

Key Features

• Grade 8 alloy steel construction provides high tensile and torsional strength
• Cup point geometry bites into mating surface for positive rotational and axial retention
• 10-24 UNC thread standard ensures broad compatibility with tapped shaft collars and hubs
• 3/32-inch hex drive accepts standard hex keys and hex-bit drivers
• Headless design sits fully flush or recessed within the tapped hole
• Conforms to ASME/ANSI B18.3 and ASTM F912 fastener standards

Compatibility

Designed as an OEM-style replacement or maintenance stock fastener for mechanical assemblies using 10-24 UNC tapped set screw holes with cup point specification.

Installation Notes

Installation is performed by machinists or qualified mechanical technicians using a 3/32-inch hex key or T-handle hex driver. Ensure the mating shaft or component surface is clean and free of debris before installation. De-energize and lock out any equipment before servicing rotating components per applicable OSHA lockout/tagout procedures. Do not exceed the rated thread engagement depth for the tapped receiving material.
