Value Collection 1-1CL-10-17- Iron Thumb Screw 10-24

Product Description

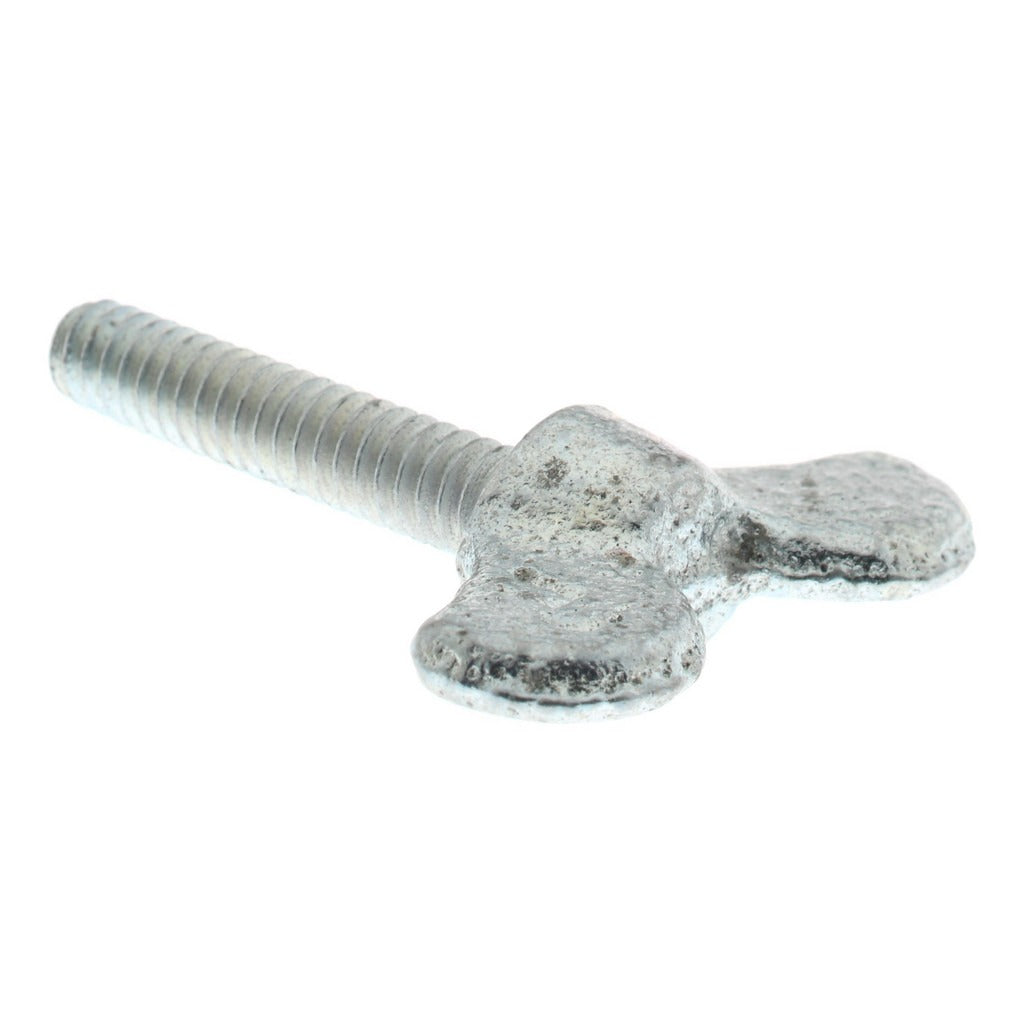

The VALUE COLLECTION 1-1CL-10-17- is a winged iron thumb screw designed for hand-tightening applications where tools are not available or practical. Manufactured from iron with a zinc finish, this thumb screw features a 10-24 UNC thread and a 1 inch length under the head. The winged head design provides a secure grip surface for manual installation and removal. With a head diameter of 1-1/16 inches and a head height of 1/2 inch, it is sized for standard fastening tasks in light mechanical assemblies, enclosures, and access panels.

This thumb screw is suited for use in industrial, mechanical, and general-purpose assembly applications where frequent manual access is required. The shouldered construction, with a shoulder diameter of 3/8 inch, helps maintain alignment and provides a positive seating surface against mating components. It is commonly used by maintenance technicians, electricians, and equipment assemblers working on panels, covers, and housings that require regular removal.

Key Features

• Winged head allows hand-tightening and removal without tools
• Iron construction with zinc finish for corrosion resistance
• 10-24 UNC thread for broad compatibility with standard tapped holes
• With-shoulder design aids component alignment during installation
• 1 inch length under head suits standard panel and cover fastening
• Overall length of 1-1/2 inches accommodates typical assembly stack-ups

Compatibility

Designed as a standard replacement or service thumb screw for assemblies using 10-24 UNC tapped holes requiring a winged, shouldered fastener in the inch measurement system.

Installation Notes

Install by hand-threading into a 10-24 UNC tapped hole; no tools are required for standard hand-tight applications. Ensure mating threads are clean and free of debris before installation. Do not over-torque by applying tools to the winged head, as this may damage the fastener or mating threads. Follow applicable mechanical assembly standards for the equipment being serviced.
