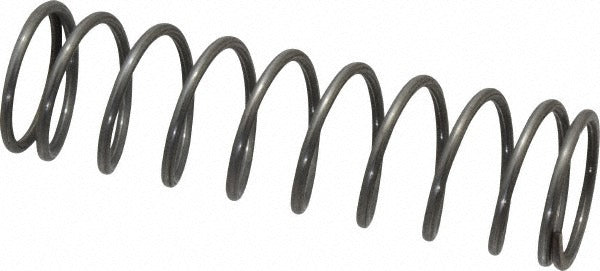

Value Collection 06813414 Compression Spring 0.975 in Od

Product Description

The VALUE COLLECTION 06813414 is a compression spring designed for general mechanical and industrial applications. It features an outside diameter of 0.975 inches and a free length of 3.5 inches, making it suitable for a range of spring-loaded assemblies, actuators, and return-force mechanisms. The spring is rated at a maximum work load of 22.41 pounds and a spring rate of 9.5 pounds per inch, providing consistent, predictable force across its travel. With a wire diameter of 0.08 inches and a solid height of 0.851 inches, it is built for compact installations where precise load control is required. Maintenance technicians, machine builders, and industrial service professionals commonly specify this type of spring during equipment repair and assembly work.

This compression spring is appropriate for use in light-to-medium duty mechanical assemblies requiring a controlled return or clamping force. It fits into a hole diameter of 1.0 inch, making it compatible with standard bore fixtures and spring pockets. Typical applications include valve assemblies, pneumatic components, tooling fixtures, industrial equipment, and general mechanical spring seats where consistent compression force is needed.

Key Features

• Outside diameter of 0.975 inches for standard spring pocket fitment
• Free length of 3.5 inches with a compact solid height of 0.851 inches
• Spring rate of 9.5 pounds per inch for predictable linear force output
• Maximum work load rated at 22.41 pounds
• Wire diameter of 0.08 inches for consistent coil geometry and durability
• Designed to fit a 1.0-inch hole diameter

Compatibility

Designed as a general-purpose replacement compression spring for mechanical assemblies requiring a 0.975-inch outside diameter and 3.5-inch free length with a 1.0-inch hole diameter fitment.

Installation Notes

Installation is typically performed by maintenance technicians or machine builders during equipment repair or assembly. Before servicing any spring-loaded assembly, ensure the system is fully de-energized, depressurized, and locked out per applicable OSHA lockout/tagout procedures. Verify that the spring pocket or bore matches the specified hole diameter before installation. Do not compress the spring beyond its solid height during fitting or testing.
