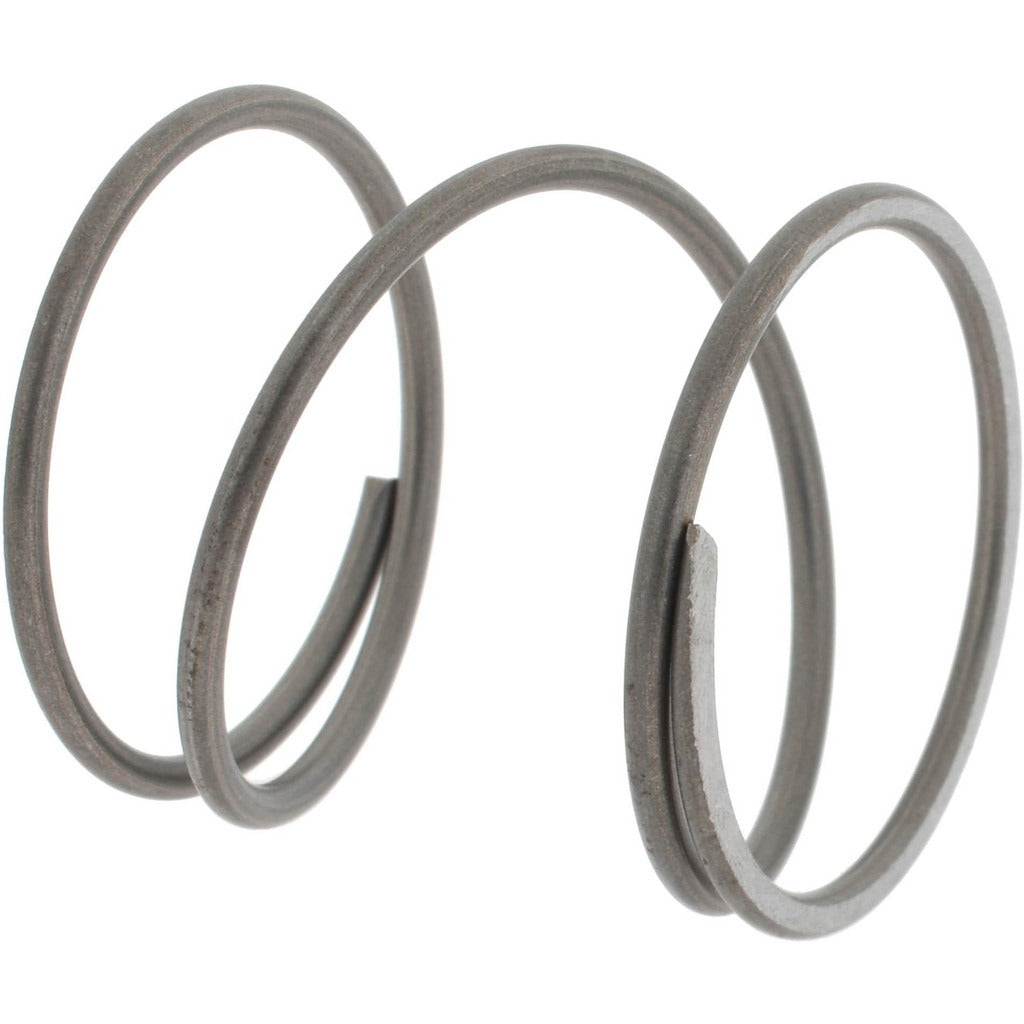

Value Collection 06813224 Compression Spring 0.975 in Od

Product Description

The VALUE COLLECTION 06813224 is a helical compression spring designed for general mechanical and industrial applications. With an outside diameter of 0.975 inches and a free length of 1 inch, this spring delivers a spring rate of 15.94 pounds per inch and handles a maximum work load of 11 pounds. Wire diameter measures 0.062 inches, and the solid height is 0.232 inches. This part is suited for use by maintenance technicians, mechanical assemblers, and trade professionals who need a reliable stock compression spring for light-duty load and return-force applications. Each package contains 5 springs.

This compression spring fits installations where a 0.975-inch OD and 1-inch free length are specified. With a recommended hole diameter of 1 inch, it seats cleanly in standard bored housings or guide assemblies. Typical applications include valve mechanisms, tool assemblies, latching hardware, HVAC damper linkages, and other light-load mechanical systems requiring consistent spring return force at a 15.94 lb/in rate.

Key Features

• 0.975-inch outside diameter for fitment in 1-inch diameter bored housings
• 1-inch free length with a compact 0.232-inch solid height
• 15.94 lb/in spring rate for predictable, consistent load response
• 11-pound maximum work load capacity
• 0.062-inch wire diameter for light-duty compression applications
• Packaged in quantities of 5 for convenient stocking and replacement use

Compatibility

Designed as a general-purpose stock compression spring suitable for mechanical assemblies, light industrial equipment, and trade hardware requiring a 0.975-inch OD and 1-inch free length specification.

Installation Notes

Installation is typically performed by mechanical technicians or maintenance professionals. Ensure the mating bore or guide pin dimensions match the specified hole diameter of 1 inch and wire diameter of 0.062 inches before installation. De-energize or relieve any preloaded tension in the assembly before replacing the spring. Avoid exceeding the 11-pound maximum work load to prevent set or premature fatigue.
