Value Collection 06812432 Compression Spring 0.6 in Od 2.5 in

Product Description

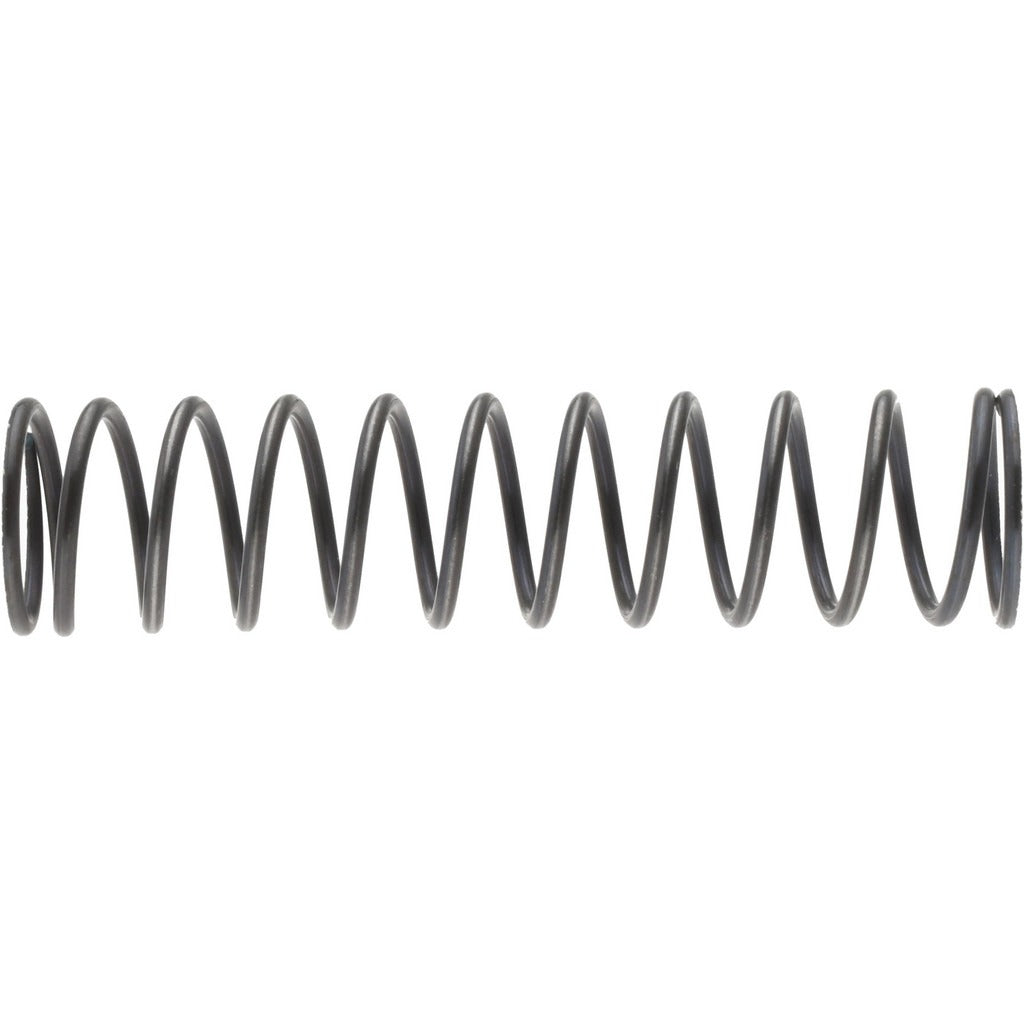

The VALUE COLLECTION 06812432 is a helical compression spring suited for light-duty mechanical assemblies, tooling fixtures, and general industrial or trade applications. Built to a 0.6-inch outside diameter and a 2.5-inch free length, it delivers a spring rate of 7.77 pounds per inch and handles a maximum work load of 12.55 pounds. Wire diameter is 0.054 inches, and solid height measures 0.684 inches. This spring is a stock item typically installed or specified by maintenance technicians, millwrights, and mechanical contractors working on equipment requiring consistent return force or load resistance.

This compression spring fits applications where a 0.6-inch OD and 2.5-inch free length are required. It is designed for use in enclosures, actuators, valve assemblies, latching mechanisms, and similar mechanical systems. The 0.625-inch hole diameter clearance makes it straightforward to pilot on a rod or seat in a bore. Sold in a pack of 5 units, it is appropriate for both single-repair and small-batch production needs across residential and light commercial mechanical work.

Key Features

• 0.6-inch outside diameter with a 0.625-inch recommended hole diameter for secure seating
• 2.5-inch free length and 0.684-inch solid height define the full compression range
• Spring rate of 7.77 lb/in provides predictable, linear load response
• Maximum work load rated at 12.55 pounds for light-duty mechanical service
• 0.054-inch wire diameter balances coil strength with compact geometry
• Pack of 5 units supports repair stock and small-volume production use

Compatibility

Designed as a general-purpose compression spring for mechanical assemblies requiring a 0.6-inch OD and 2.5-inch free length. Verify inside bore diameter, rod diameter, and load requirements against your specific application before installation.

Installation Notes

Compression springs should be installed by qualified mechanical or maintenance technicians familiar with spring-loaded assemblies. Always relieve system pressure and de-energize any powered components before disassembling spring-loaded mechanisms. Confirm the mating bore or rod dimensions match the hole diameter and wire diameter specifications to prevent buckling or misalignment during compression. Do not compress the spring beyond its solid height during installation or operation.
