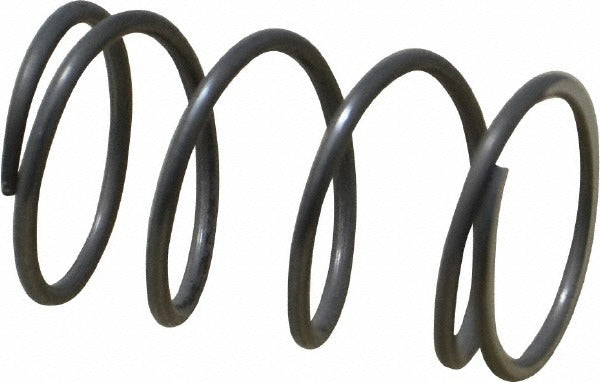

Value Collection 06812317 Compression Spring 0.6in Od 1in

Product Description

The VALUE COLLECTION 06812317 is a small-format compression spring suited for light-duty mechanical assemblies requiring consistent, repeatable force over a short stroke. With a 0.6-inch outside diameter and a 1-inch free length, the spring operates at a rate of 12.19 lb/in and handles a maximum work load of 8.1 pounds. Wire diameter measures 0.047 inches. The solid height is 0.253 inches, and the recommended hole diameter is 0.625 inches. This part is sized for applications where space is tight and precise spring force is critical to proper function.

This compression spring fits a wide range of light mechanical, industrial, and trade-equipment applications. Typical uses include valve assemblies, actuator mechanisms, latching components, and small equipment housings found in HVAC, plumbing, and electrical hardware. Sold in a package quantity of 10, this spring is well suited for technicians who need replacement inventory on hand or are building sub-assemblies in the field or shop.

Key Features

• 0.6-inch outside diameter for fit in a 0.625-inch hole
• 1-inch free length with 0.253-inch solid height
• 12.19 lb/in spring rate for consistent, predictable force
• 8.1-pound maximum work load rating
• 0.047-inch wire diameter for light-duty compression duty
• Packaged in quantities of 10 to support service inventory needs

Compatibility

Designed as a general-purpose replacement or stock compression spring for light-duty mechanical assemblies requiring a 0.6-inch OD and 1-inch free length with a spring rate near 12.19 lb/in.

Installation Notes

Compression springs of this size are typically installed by maintenance technicians, HVAC service pros, or plumbing and mechanical contractors during sub-assembly repair or equipment overhaul. Always de-energize and depressurize the affected system before removing or installing spring components. Confirm hole diameter clearance and solid height clearance before compressing the spring into its seat. Do not exceed the rated maximum work load of 8.1 pounds to avoid permanent set or premature failure.
