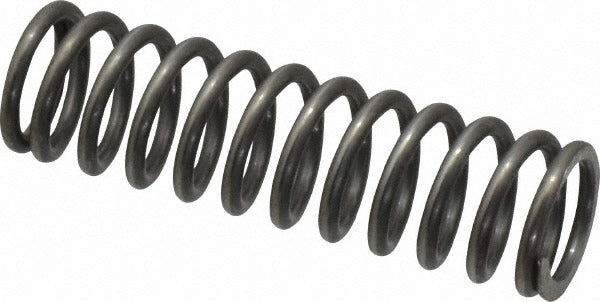

Value Collection 06812200 Compression Spring 0.48in Od

Product Description

The VALUE COLLECTION 06812200 is a helical compression spring designed for general mechanical and industrial applications. With an outside diameter of 0.48 inches and a free length of 1.75 inches, this spring delivers a spring rate of 25.97 pounds per inch and supports a maximum work load of 21.56 pounds. The wire diameter measures 0.062 inches, and the solid height is 0.818 inches. It is a stock spring suited for equipment assemblies, fixtures, tooling, and mechanical devices where a compact, light-duty compression element is required. Maintenance technicians, machine builders, and industrial assemblers commonly select this spring for both OEM and repair applications.

This spring fits applications where a 0.48-inch OD spring must seat inside a housing or bore with a maximum recommended hole diameter of 0.50 inches. It is appropriate for light-duty mechanical assemblies across manufacturing, HVAC equipment components, electrical enclosures, and general industrial machinery. The compact form factor and defined spring rate make it suitable for repeatable load applications in both new builds and field repairs. Springs are sold in packages of 10 units per package.

Key Features

• Outside diameter of 0.48 inches fits inside a 0.50-inch bore or hole
• Spring rate of 25.97 pounds per inch provides consistent, predictable deflection under load
• Maximum work load of 21.56 pounds for light-duty compression service
• Wire diameter of 0.062 inches with a solid height of 0.818 inches
• Free length of 1.75 inches allows for meaningful travel before reaching solid height
• Packaged in quantities of 10 for job lot use or bench stock

Compatibility

Designed as a general-purpose stock compression spring suitable for light-duty mechanical assemblies, fixtures, and equipment requiring a 0.48-inch OD helical compression spring with a 1.75-inch free length.

Installation Notes

Installation is typically performed by mechanical assemblers or field technicians during equipment assembly or repair. Ensure the mating bore or housing does not exceed 0.50 inches in diameter to maintain proper spring alignment and prevent buckling. De-energize or depressurize any system before replacing compression springs in loaded assemblies. Avoid compressing the spring beyond its solid height of 0.818 inches during installation or operation.
