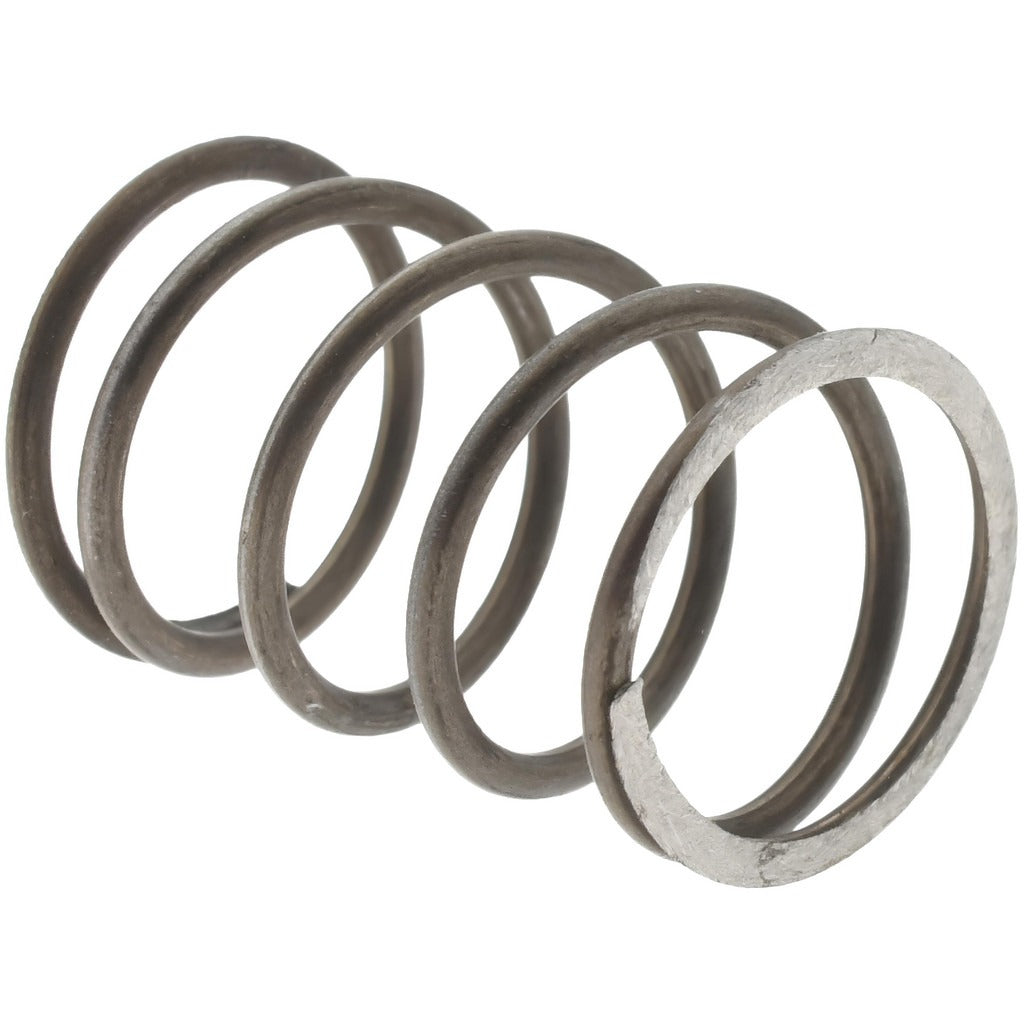

Value Collection 06811921 Compression Spring 0.48in Od Pack 10

Product Description

The VALUE COLLECTION 06811921 is a small-diameter compression spring suited for light-duty mechanical assemblies, fixtures, tooling, and general industrial applications. It measures 0.48 inches outside diameter with a free length of 0.75 inches and a wire diameter of 0.041 inches. The spring delivers a rate of 14.47 lb/in and handles a maximum work load of 6.84 pounds. With a solid height of 0.218 inches, it collapses into a compact stack. This part ships in a package quantity of 10 and is commonly specified by mechanical assemblers, maintenance technicians, and OEM builders working with small mechanical sub-assemblies.

This compression spring is appropriate for residential and light commercial mechanical applications where a small-form spring with controlled rate and defined max load is required. Typical install scenarios include tool fixtures, valve assemblies, hinges, latches, and general-purpose mechanical tensioning. The 0.5-inch hole diameter fit makes it compatible with standard guide pin configurations in that size range. Professionals sourcing replacement or production springs for high-cycle light-load mechanisms will find the geometry and rate of this spring well suited to those demands.

Key Features

• 0.48 inches outside diameter fits standard 0.5-inch hole diameter guides
• Spring rate of 14.47 lb/in provides consistent, predictable deflection under load
• Maximum work load of 6.84 pounds for light-duty mechanical applications
• Compact solid height of 0.218 inches allows use in tightly constrained assemblies
• Wire diameter of 0.041 inches for fine-pitch coil construction
• Sold in a pack of 10, suitable for production runs or service stock

Compatibility

Designed as a general-purpose compression spring for light-duty mechanical assemblies requiring a 0.48-inch outside diameter and 0.75-inch free length with a 14.47 lb/in spring rate.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians using standard hand tools. Ensure the mating guide pin or hole diameter is within tolerance of the 0.48-inch OD and 0.5-inch hole diameter specifications before installation. Do not compress the spring beyond its solid height of 0.218 inches during assembly. Relieve any preload on the assembly before removing or replacing the spring.
