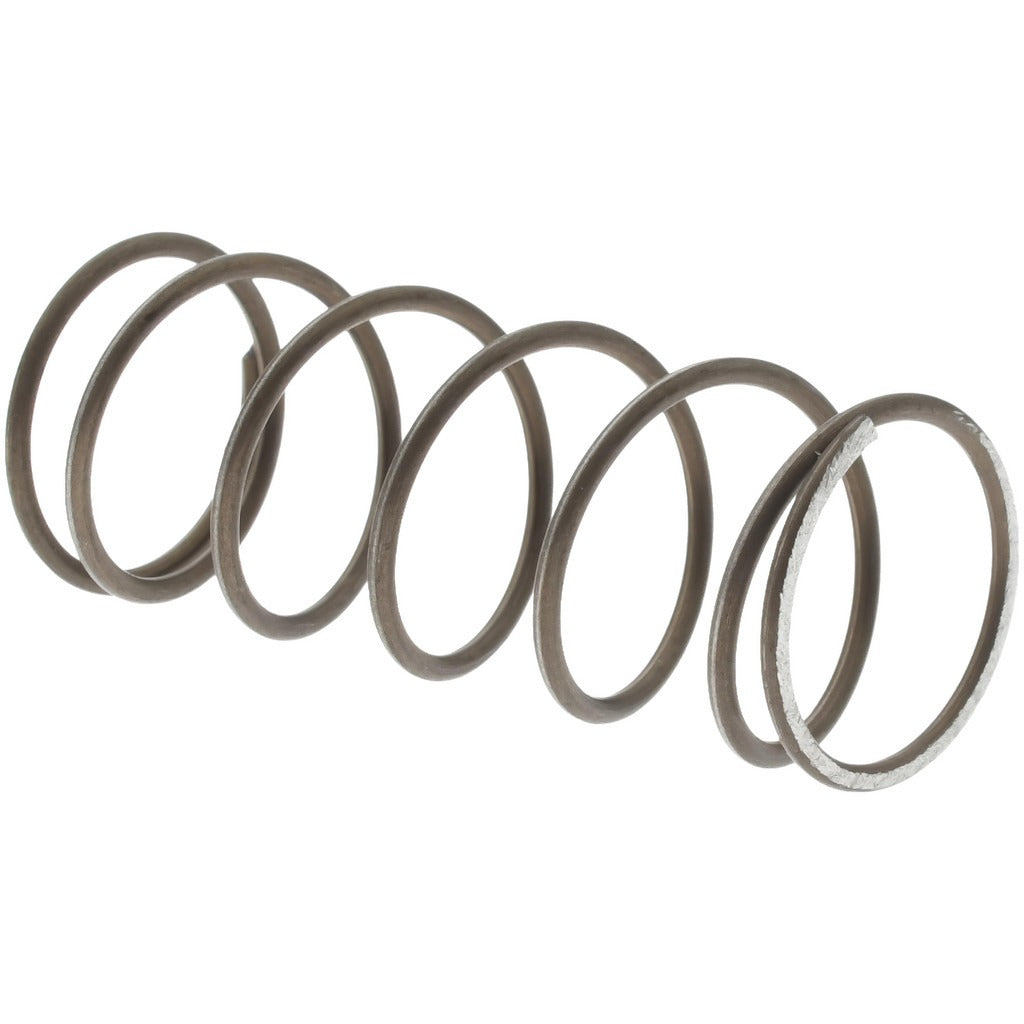

Value Collection 06811863 Compression Spring 0.48in Od

Product Description

The VALUE COLLECTION 06811863 is a compression spring designed for light-duty mechanical applications where controlled load resistance and consistent return force are required. With an outside diameter of 0.48 inches, a free length of 1.25 inches, and a wire diameter of 0.035 inches, this spring is sized for compact assemblies. It delivers a maximum work load of 4.39 pounds and a spring rate of 4.91 pounds per inch, making it suitable for applications that demand repeatable, predictable deflection behavior. Sold in a package quantity of 10, it is a standard replacement or build-out component used by maintenance technicians, machine builders, and industrial assemblers.

This compression spring fits a range of general mechanical and industrial applications including light machinery, tooling fixtures, valve assemblies, and small equipment where a compact coil spring with consistent load characteristics is needed. Its solid height of 0.244 inches and hole diameter of 0.500 inches make it well suited for guided-pin installations or bore-retained assemblies. The package quantity of 10 supports both single-repair service calls and small-batch production needs.

Key Features

• Outside diameter of 0.48 inches fits standard 0.500-inch bore installations
• Spring rate of 4.91 pounds per inch for predictable, linear deflection
• Maximum work load of 4.39 pounds supports light-duty load applications
• Wire diameter of 0.035 inches provides consistent coil geometry
• Solid height of 0.244 inches limits over-compression in confined spaces
• Package quantity of 10 per order for stocking and repair use

Compatibility

Designed as a general-purpose compression spring for light-duty mechanical assemblies requiring a 0.48-inch outside diameter and 1.25-inch free length coil spring.

Installation Notes

Installation is typically performed by maintenance technicians or machine assemblers working on mechanical equipment. Relieve all tension and de-energize any powered components before removing or installing compression springs. Ensure the mating bore or guide pin dimensions match the spring outside diameter and wire size to prevent binding or misalignment during compression. Verify that operating deflection does not exceed the spring's maximum work load rating.
