Value Collection 06811632 Compression Spring 0.42in Od

Product Description

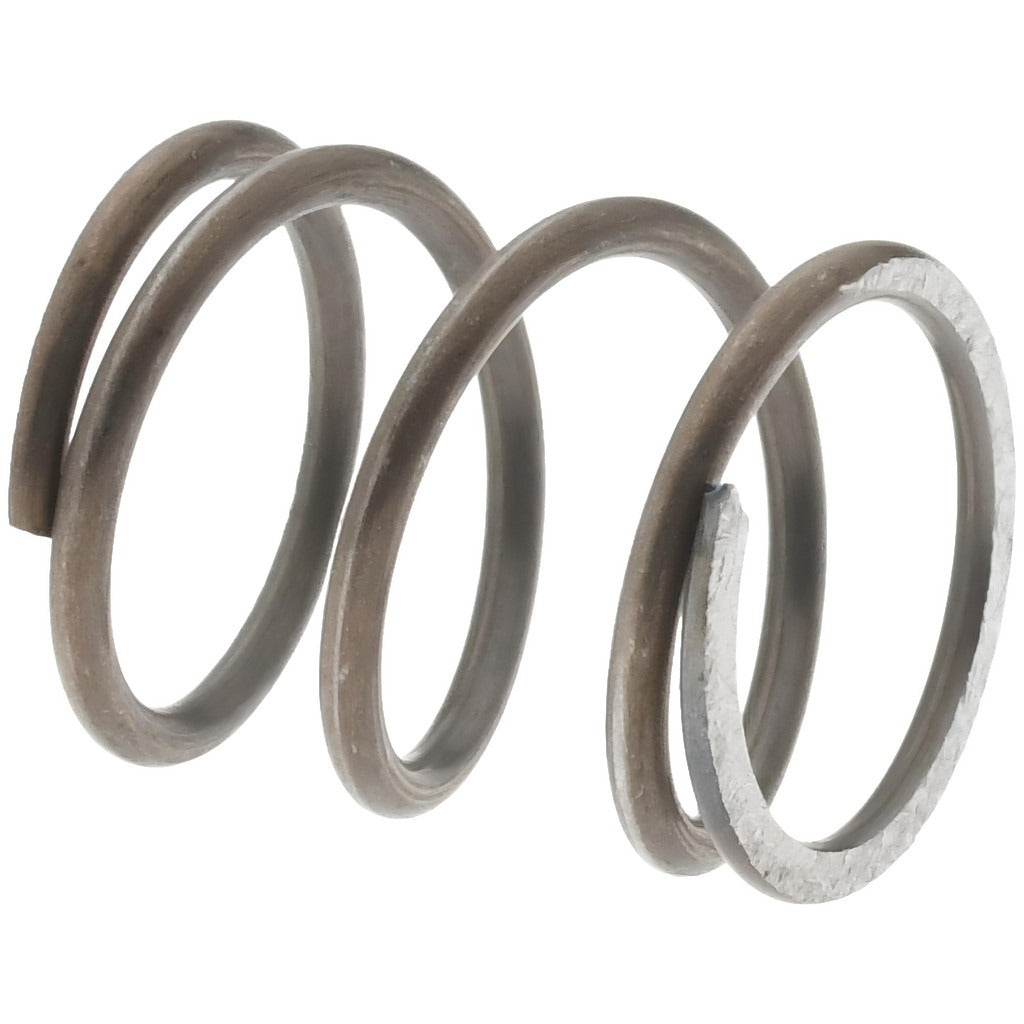

The VALUE COLLECTION 06811632 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and precision equipment applications. It measures 0.42 inches in outside diameter with a free length of 0.5 inches and a wire diameter of 0.041 inches. The spring delivers a rate of 28.24 pounds per inch and supports a maximum working load of 7.77 pounds. Sold in a package of 10, it is a practical choice for maintenance technicians, machinists, and assemblers who need consistent performance in compact spring positions.

This compression spring fits applications where a small-profile, close-tolerance spring is required. Typical uses include instrument panels, valve assemblies, latching mechanisms, and light industrial equipment. The 0.438-inch hole diameter guidance and 0.19-inch solid height make it well suited for confined cavities in precision-manufactured components. Technicians working in HVAC, plumbing controls, or general mechanical assembly will find this spring a standard replacement candidate for similar-dimension positions.

Key Features

• 0.42-inch outside diameter for compact, tight-clearance installations
• 0.5-inch free length with a solid height of 0.19 inches
• 28.24 pounds per inch spring rate for consistent, predictable deflection
• Maximum working load of 7.77 pounds
• 0.041-inch wire diameter for fine-pitch coil geometry
• Packaged in quantities of 10 for service stock or bench inventory

Compatibility

Designed as a general-purpose replacement compression spring for applications requiring a 0.42-inch outside diameter, 0.5-inch free length, and 28.24 pounds per inch spring rate.

Installation Notes

Installation should be performed by a qualified technician familiar with spring-loaded assemblies. Relieve all mechanical tension and de-energize any associated equipment before removing or replacing springs in loaded positions. Verify that the mating bore diameter accommodates the 0.438-inch hole diameter guidance and that the cavity allows full free-length travel without binding. Never exceed the rated maximum working load of 7.77 pounds to avoid permanent set or coil clash.
