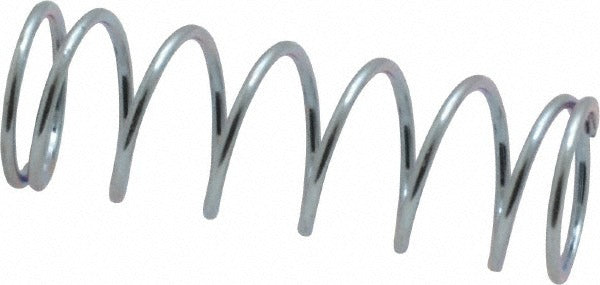

Value Collection 06811590 Compression Spring 0.42in Od

Product Description

The VALUE COLLECTION 06811590 is a compression spring designed for general mechanical and industrial applications requiring a compact, light-duty return or load force. With an outside diameter of 0.42 inches and a free length of 1.25 inches, this spring fits into tight bore and housing assemblies where space is limited. The wire diameter measures 0.035 inches, and the spring delivers a maximum work load of 5 pounds at a spring rate of 5.85 pounds per inch. Machinists, maintenance technicians, and mechanical assemblers commonly install this type of spring in fixtures, tooling, valves, and light equipment where consistent, repeatable deflection is required.

This compression spring is suited for residential and commercial mechanical assemblies, tooling fixtures, machine components, and valve mechanisms. Its compact geometry makes it a practical choice for applications where a small bore diameter and short travel distance are design constraints. The 0.4380-inch hole diameter clearance and 0.295-inch solid height allow for straightforward integration into precision assemblies. Sold in a package quantity of 10, this spring is appropriate for both single-repair use and small-batch assembly work.

Key Features

• Outside diameter of 0.42 inches fits into bore holes rated at 0.4380 inches
• Free length of 1.25 inches with a compressed solid height of 0.295 inches
• Spring rate of 5.85 pounds per inch for predictable, linear deflection behavior
• Maximum work load rated at 5 pounds for light-duty compression applications
• Wire diameter of 0.035 inches provides consistent coil geometry and load distribution
• Packaged in quantities of 10 to support repair and small-assembly workflows

Compatibility

Designed as a general-purpose replacement or component spring for light-duty mechanical assemblies requiring a 0.42-inch OD compression spring with a 1.25-inch free length and 5.85 pounds per inch spring rate.

Installation Notes

Compression springs of this type are typically installed by machinists, maintenance technicians, or mechanical assemblers working on tooling, fixtures, or valve components. Before replacing a compression spring in any assembly, relieve all system pressure and de-energize any associated mechanical or electrical components. Verify the bore diameter, free length, and spring rate against the assembly specification before installation to confirm the replacement spring meets design requirements. Avoid over-compressing the spring beyond its solid height during installation, as this can permanently deform the coils.
