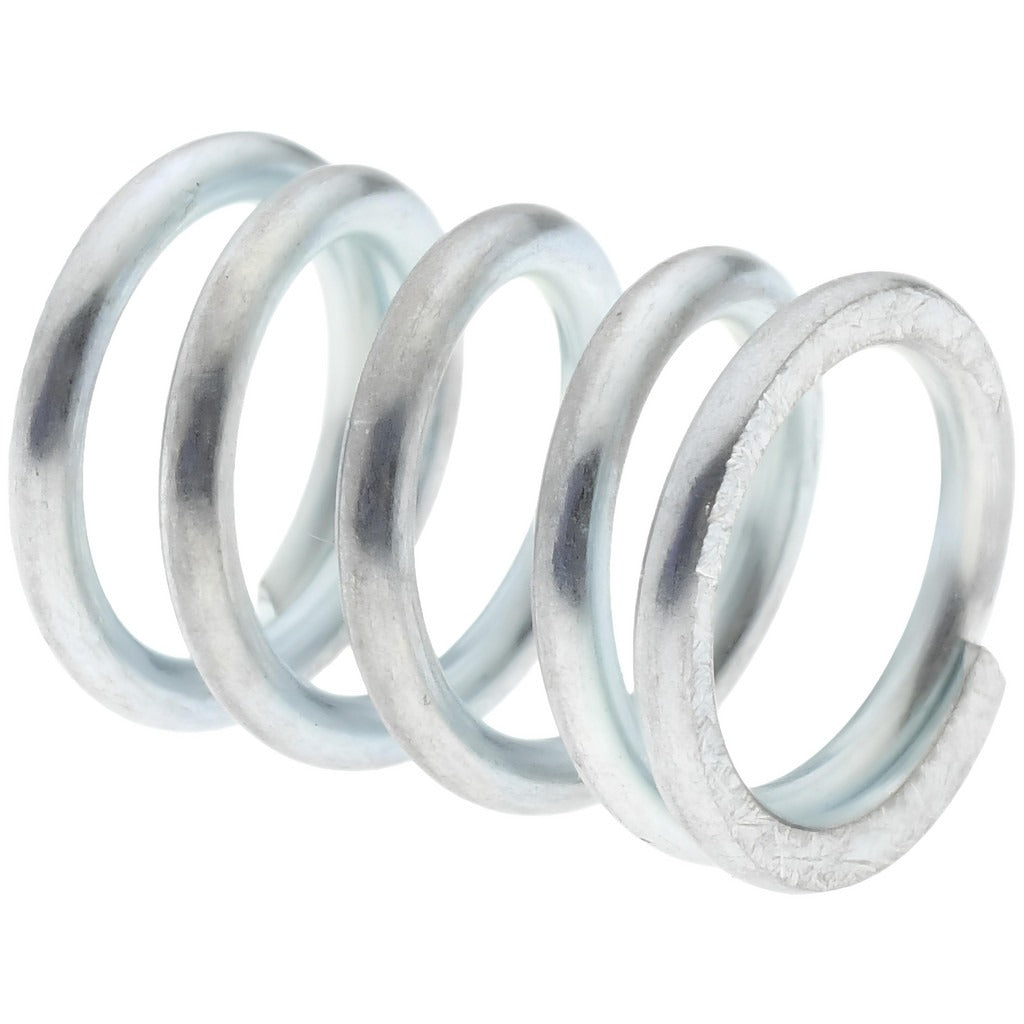

Value Collection 06811426 Compression Spring 0.36in Od 10-pack

Product Description

The VALUE COLLECTION 06811426 is a small-diameter compression spring suited for light-duty mechanical assemblies where consistent return force and compact dimensions are required. The spring measures 0.36 inches in outside diameter and 0.5 inches in free length, with a wire diameter of 0.047 inches. It delivers a spring rate of 62.14 pounds per inch and a maximum work load of 13.1 pounds. These specs make it appropriate for precision actuator mechanisms, valve assemblies, latch systems, and similar close-tolerance applications. Sold in a pack of 10 units. Licensed trades, mechanical engineers, and industrial maintenance technicians are the typical end users for this spring type.

This compression spring is used in residential and commercial mechanical assemblies where a small-bore spring with moderate load capacity is specified. Typical applications include instrument housings, control valve internals, relay mechanisms, and general fastener or latch return systems. The 0.375-inch hole diameter clearance spec makes it straightforward to size against a pin or post, and the 0.267-inch solid height guides stacking and travel calculations during design or replacement work.

Key Features

• Outside diameter of 0.36 inches for use in tight-bore assemblies
• Spring rate of 62.14 pounds per inch for predictable, linear return force
• Maximum work load rated at 13.1 pounds
• Wire diameter of 0.047 inches supporting compact coil geometry
• Solid height of 0.267 inches for accurate travel and stack-height planning
• Sold in a 10-pack to support service kits and batch replacement jobs

Compatibility

Designed as a general-purpose compression spring replacement for mechanical assemblies requiring a 0.36-inch outside diameter and 0.5-inch free length specification. Verify hole diameter clearance and solid height against the original design before installation.

Installation Notes

Installation is typically performed by mechanical or industrial maintenance technicians. Relieve all system pressure and de-energize any associated electrical or pneumatic circuits before disassembling the mechanism housing. Use calibrated spring tools or needle-nose pliers for seating; do not over-compress beyond the rated solid height, as this can permanently set the spring and reduce load capacity. Confirm the replacement spring rate and maximum load against the original equipment specification before closing the assembly.
