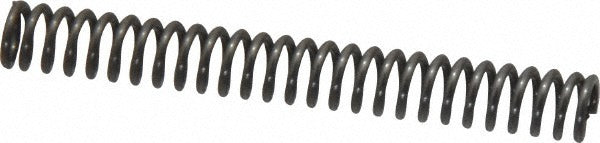

Value Collection 06810782 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 06810782 is a small-diameter compression spring suited for light-duty mechanical assemblies, fixtures, and tooling applications. With an outside diameter of 0.24 inches and a free length of 2 inches, this spring is wound from 0.035-inch wire and delivers a spring rate of 9.96 pounds per inch. Maximum working load is 8.43 pounds. The solid height of 0.949 inches gives the assembly designer a clear picture of compressed stack dimensions. Technicians and machinists specify this spring when they need a compact, consistent-rate compression element in a confined space. Ten springs are included per package.

This spring fits applications where a 0.25-inch hole diameter is the mating bore. Typical uses include return mechanisms, valve assemblies, jig and fixture components, light electrical hardware, and plumbing or HVAC actuator subassemblies. The package quantity of 10 makes it practical for service inventories where multiples are consumed during routine maintenance or equipment repair. It is appropriate for both residential and commercial equipment environments wherever a low-load compression spring of this size is specified.

Key Features

• Outside diameter of 0.24 inches fits standard 0.25-inch bore applications
• Free length of 2 inches with a compressed solid height of 0.949 inches
• Spring rate of 9.96 pounds per inch for predictable, linear deflection
• Maximum working load rated at 8.43 pounds
• Wire diameter of 0.035 inches for consistent coil geometry
• Packaged in quantities of 10 for service stock efficiency

Compatibility

Designed as a general-purpose replacement or service compression spring for mechanical assemblies, fixtures, and equipment components requiring a 0.24-inch OD spring with a 2-inch free length and a 9.96 pounds-per-inch spring rate.

Installation Notes

De-energize or depressurize the equipment before removing or replacing compression springs in actuator or valve assemblies. Verify that the mating bore and shaft dimensions match the spring outside diameter and wire size before installation. Use appropriate hand tools and eye protection when compressing or seating springs under preload. Consult equipment service documentation to confirm the required free length and spring rate before substitution.
