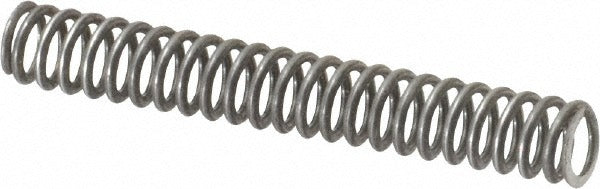

Value Collection 06810774 Compression Spring 0.24in Od

Product Description

The VALUE COLLECTION 06810774 is a small-diameter compression spring suited for light-duty mechanical assemblies requiring consistent return force in a compact form factor. The spring features a 0.24 inch outside diameter and a 1.75 inch free length, with a wire diameter of 0.035 inches. It delivers a spring rate of 11.44 lb/in and handles a maximum work load of 8.43 pounds. These specifications make it a reliable choice for instrumentation, valves, latches, and other precision assemblies where controlled deflection and load resistance are required. Installation is straightforward for machinists, maintenance technicians, and mechanical assemblers working with small-bore spring pockets.

This compression spring is designed for use in mechanical assemblies where a small outer diameter and moderate spring rate are needed. Typical applications include control valves, push-button mechanisms, electrical contacts, and light industrial fixtures. The solid height of 0.835 inches and a recommended hole diameter of 0.25 inches help define the bore and pocket geometry needed for proper fitment. It is packaged in quantities of 10, making it suitable for bench stock, maintenance kits, or production runs requiring consistent performance across multiple assemblies.

Key Features

• 0.24 inch outside diameter for use in small-bore spring pockets
• 1.75 inch free length provides adequate travel range for light-duty applications
• 11.44 lb/in spring rate delivers predictable, linear compression response
• 8.43 pound maximum work load suitable for light mechanical and instrument-grade assemblies
• 0.035 inch wire diameter offers a fine-wound coil construction for precise load control
• Solid height of 0.835 inches limits full compression deflection and prevents coil bind damage

Compatibility

Designed as a general-purpose compression spring for light mechanical assemblies requiring a 0.24 inch outside diameter and 1.75 inch free length. Verify bore diameter, pocket depth, and load requirements against your application before installation.

Installation Notes

Compression springs should be installed by qualified mechanical technicians familiar with spring-loaded assembly procedures. Confirm that the mating bore diameter of 0.25 inches and pocket depth accommodate the solid height before assembly. Relieve any stored mechanical energy in adjacent components before removing or replacing a spring. Do not exceed the rated maximum work load, as overcompression past solid height can cause permanent set or coil failure.
