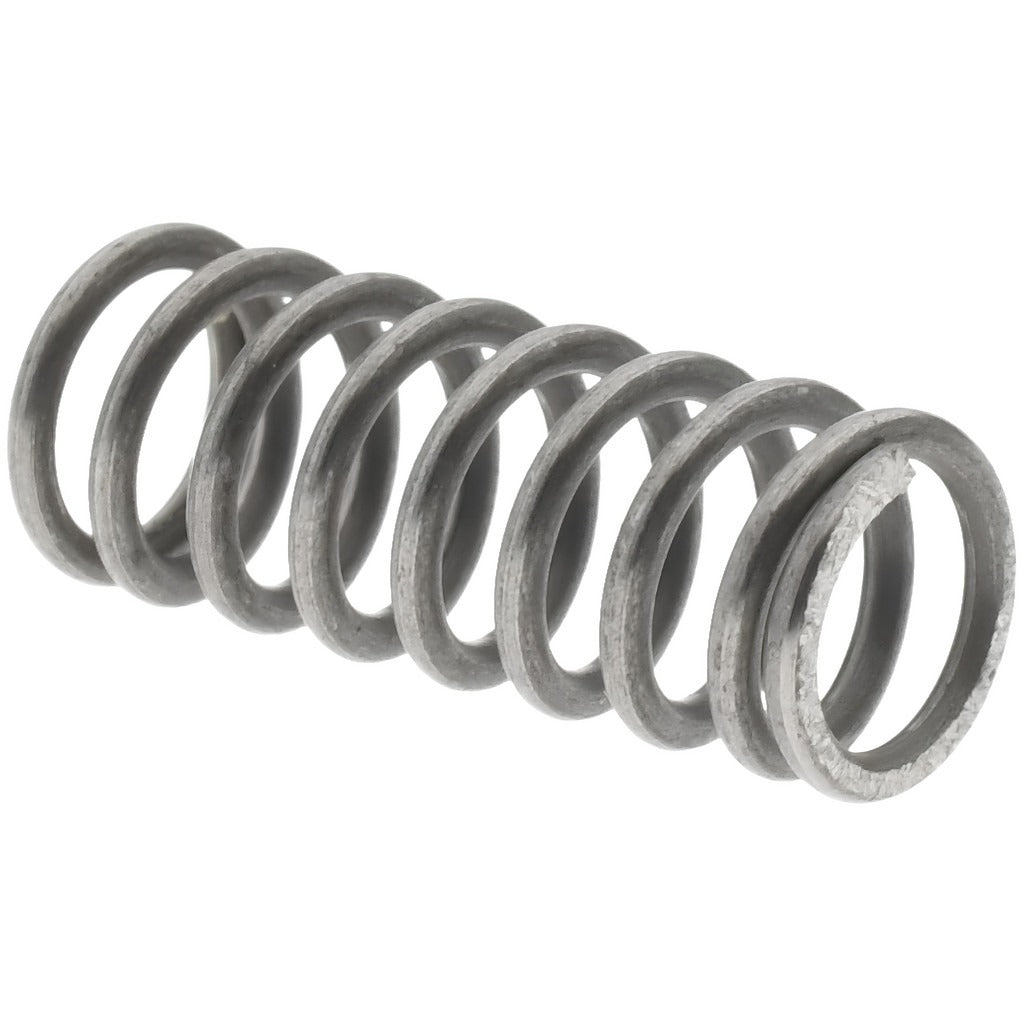

Value Collection 06810626 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 06810626 is a small-diameter compression spring suited for light-duty mechanical assemblies, tooling fixtures, and precision hardware applications. With an outside diameter of 0.24 inches and a free length of 0.625 inches, this spring is designed for confined installation environments where space is limited. The wire diameter measures 0.032 inches, and the spring delivers a rate of 23.26 lb/in with a maximum working load of 6.59 pounds. Sold in a pack of 10, this part is commonly specified by mechanical technicians, maintenance professionals, and precision assembly technicians who need a reliable replacement or build-quantity lot.

This compression spring is appropriate for residential and light commercial mechanical assemblies including valve actuators, latching mechanisms, small pneumatic or hydraulic components, and tooling jigs. The 0.25-inch hole diameter clearance and solid height of 0.294 inches make it straightforward to integrate into existing spring pockets without modification. Its compact geometry suits applications where repeatable load response over a short stroke is required.

Key Features

• Outside diameter of 0.24 inches fits tight spring pockets and bores up to 0.25 inches
• Free length of 0.625 inches with a solid height of 0.294 inches for predictable deflection range
• Spring rate of 23.26 lb/in provides consistent, linear load response
• Maximum working load of 6.59 pounds suitable for light-duty mechanical actuation
• Wire diameter of 0.032 inches for fine-pitch coil construction
• Sold in a quantity of 10 per package, minimizing downtime on multi-spring assemblies

Compatibility

Designed as a standard compression spring for light-duty mechanical and hardware assemblies requiring a 0.24-inch OD and 0.625-inch free length form factor.

Installation Notes

Installation is typically performed by mechanical or maintenance technicians as part of assembly, repair, or replacement work. Relieve all stored mechanical energy and de-energize any connected system before removing or installing springs. Verify that the mating bore or spring pocket diameter does not exceed 0.25 inches to maintain proper spring alignment under load. Do not compress the spring beyond its solid height of 0.294 inches during installation or operation.
